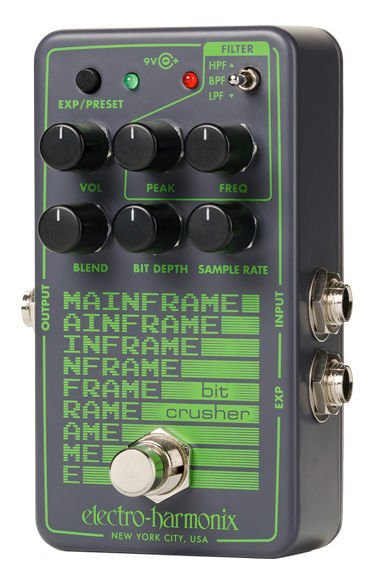

Electro Harmonix Mainframe Bit Crusher

Effects Pedal for Electric Guitar & Bass

  • Bit Crusher
  • Produces 80s-style lo-fi sounds reminiscent of early arcade games, home consoles and home computers
  • Reduces the sample rate from 48 kHz to 110 Hz, which leads to reduced audio quality and aliasing, ranging from fairly "clean" sounds to unrecognizable "crushed" sounds
  • Bit crushing from 24 bits to 1 bit increases sampling errors that creatively degrade the sound quality for dirty "old school" sounds
  • Selectable high / low / band pass filter
  • Sample Rate Tuning mode analyzes the input signal in real time and adjusts the sample rate to match the pitch of your signal or a specified interval above your signal
  • Programmable preset or expression pedal setting allows the sound to be saved or any combination of the controls on the mainframe to be controlled with an external expression pedal
  • Controls: Vol, Blend, Bit Depth, Sample Rate, Peak, Freq
  • Push buttons: EXP / Preset
  • Switch: Filter HPF / BPF / LPF
  • LED: EXP / Preset Mode, Effect On
  • Foot switch: Effect bypass
  • Input: 6.3 mm jack
  • Output: 6.3 mm jack
  • Expression pedal input: 6.3 mm stereo jack
  • Power supply connection: barrel connector 5.5 x 2.1 mm, negative polarity inside
  • Power supply via 9 V DC power supply (included)
  • Dimensions (W x D x H): 70 x 114 x 53 mm

Note: Battery operation is not supported.
