RGBLink Mini Pro V2
Multi-Format HDMI Live Streaming Video Mixer
- 4x 4K HDMI inputs with integrated scaler
- Joystick PTZ camera control and chroma keying
- PTZ camera control in 8 directions with joystick and zoom rocker
- 2" LCD touch display for monitoring and video previews
- Hardware-based noise reduction
- USB streaming output for PC or Mac
- USB recording to SSD/USB stick up to 2 TB
- Audio mixer including delay up to 160 ms
- Line input, microphone input and line output
- Chroma keying
- 14 Transition effects
- Configurable PIP video overlay
- Broadcast-style T-bar
- Shortcut key
Technical data:
- Input: 4x HDMI2.0 (HDMI-A)

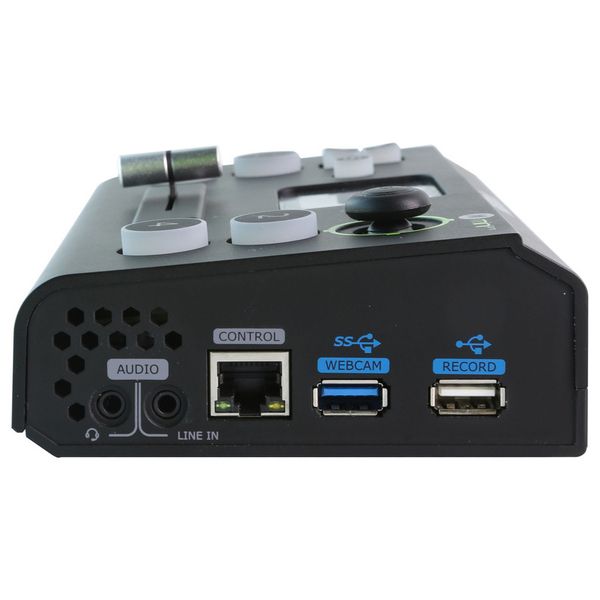

- Output: 1x HDMI 1.3 (HDMI-A), 1x USB 3.0, 1x USB 2.0 (type A)
- Audio: 1x 3.5 mm stereo jack input/output each
- Network: 1x RJ45 LAN
- Power supply: DC 12V/1.5A, max 18W
- Resolution Input SMPTE: 720p50/60, 1080i50, 1080p23/24/30/50/60, 2160p@60
- Resolution Input Vesa: 1024×768@60, 1280×720@60, 1280×768@60, 1280×800@60, 1280×1024@60, 1360×768@60, 1366×768@60, 1440×900@60, 1600×1200@60, 1680×1050@60, 1920×1080@60, 1920×1200@60, 3480x2160@60, 4096x2160@60
- Resolution Output SMPTE: 720p60 , 1080p60
- Resolution Output Vesa: 1024×768@60, 1280×720@60, 1280×768@60, 1280×1024@60, 1360×768@60, 1900×1200@24/25/30/50/60
- Supported standards: HDMI 2.0, USB 3.0, ITU-T H.265 / ISO / IEC 23008-2
- Supported protocols: PTZ: VISCA
- Colour space and sampling: RGB 4:4:4 YUV
- Power supply: 12V/1.5A. max. 18W
- Dimensions: 180 x 118 x 58 mm
- Weight: 480 g
Included:
- 1 Mini Pro V2
- 1 USB-C PD power supply with USB-C cable
- 1 USB 3.0 cable
- Y-Audio cable 3.5 mm plug and 2x 3.5 mm jack for microphone and headphones
available since
March 2023
Item number
562607
sales unit
1 piece(s)
Streaming via USB
Yes
Type
Video Mixer
