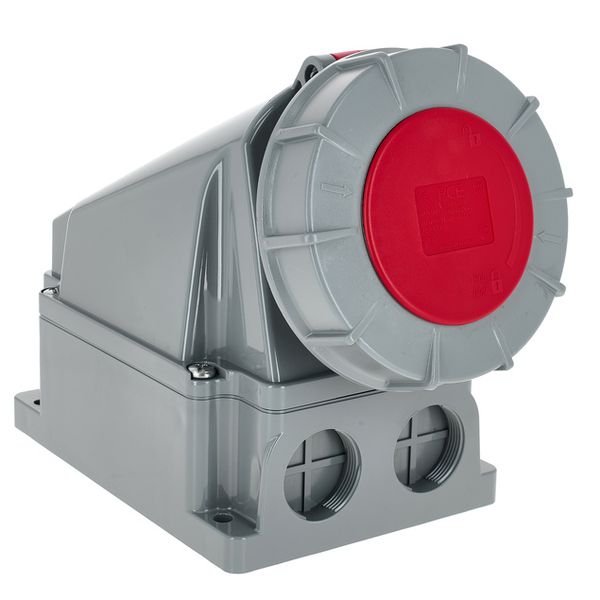

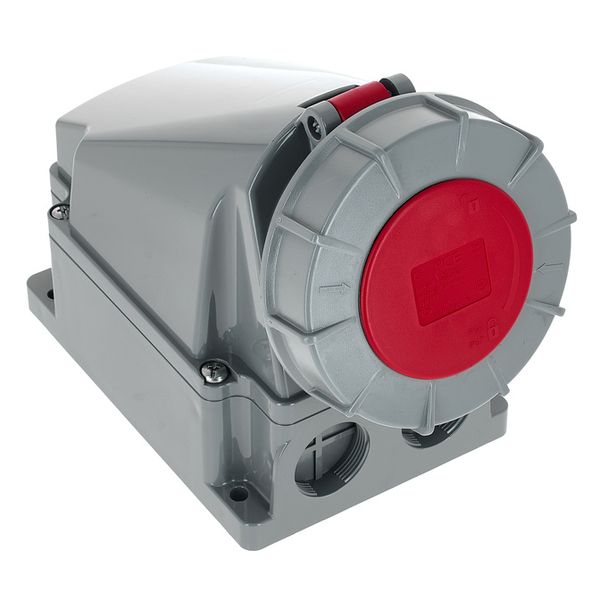

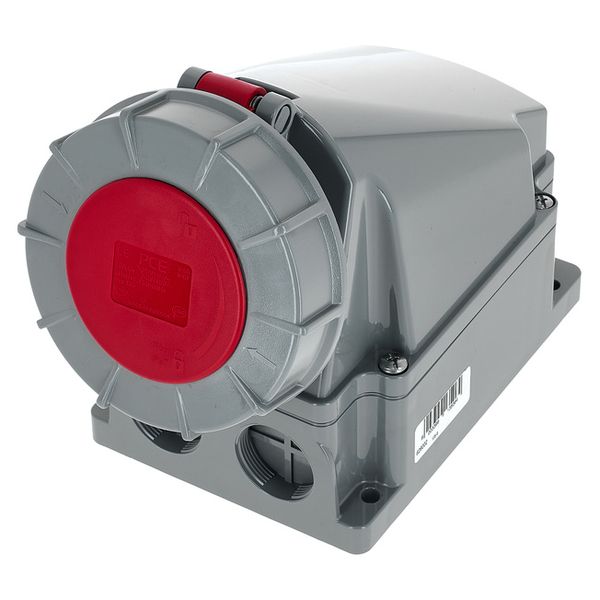

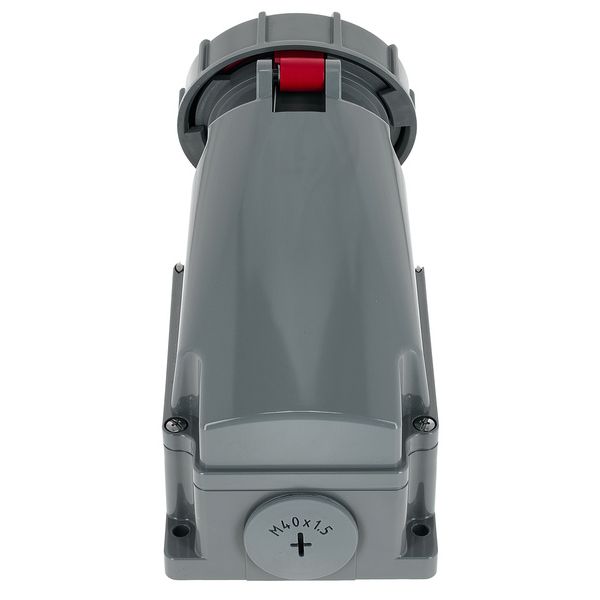

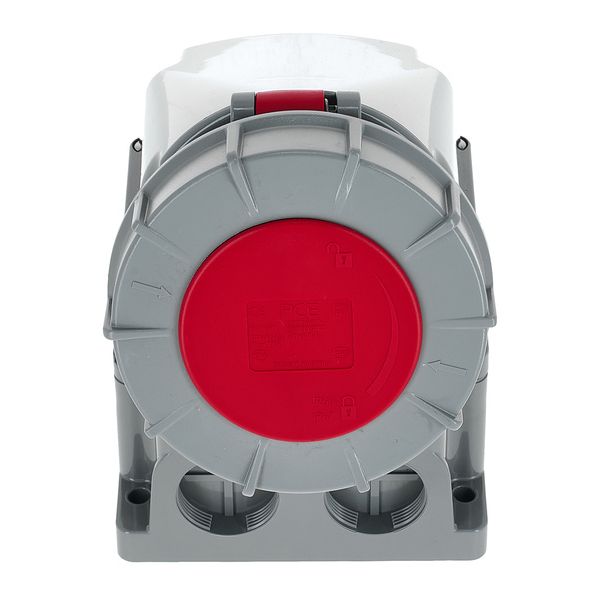

PCE 135-6 Wall Socket 63A 5pol
4.0 out of 5 stars from 1 customer ratings
()
Start 360°
Wall Socket
- 63 A – 5-pin, 6h
- IP protection rating: IP67

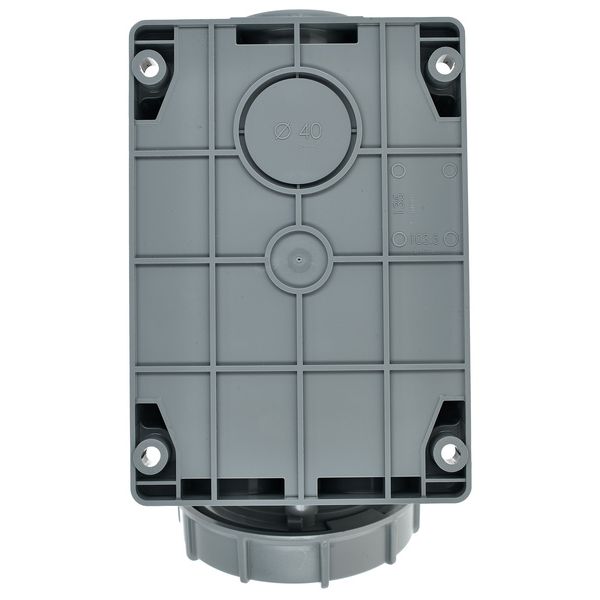

- Type: Surface-mounted
- Current rating (IEC): 63 A

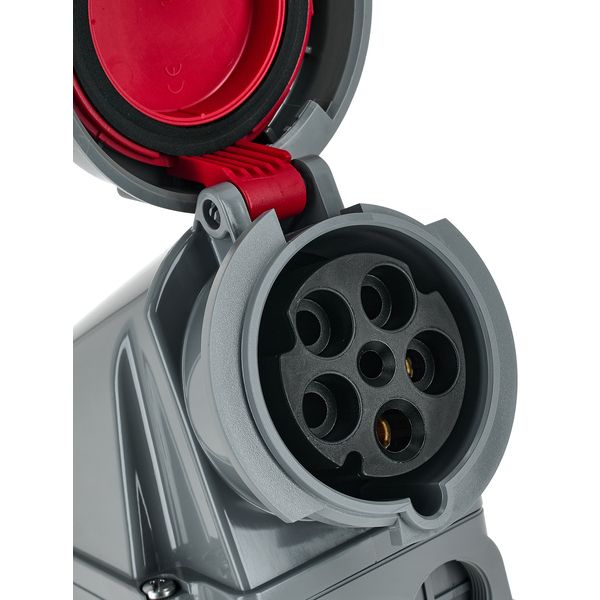

- Number of pins: 5-pin (3P + N + PE)
- Rated voltage / frequency: 200/346 V AC to 240/415 V AC / 50 + 60 Hz
- Colour code: Red (in accordance with EN 60309-2)
- Protection rating: IP67 Housing material: Heavy-duty PC/ABS
- Contact material: Brass (CuZn) with CuBe contact sleeves – for reduced insertion and extraction forces

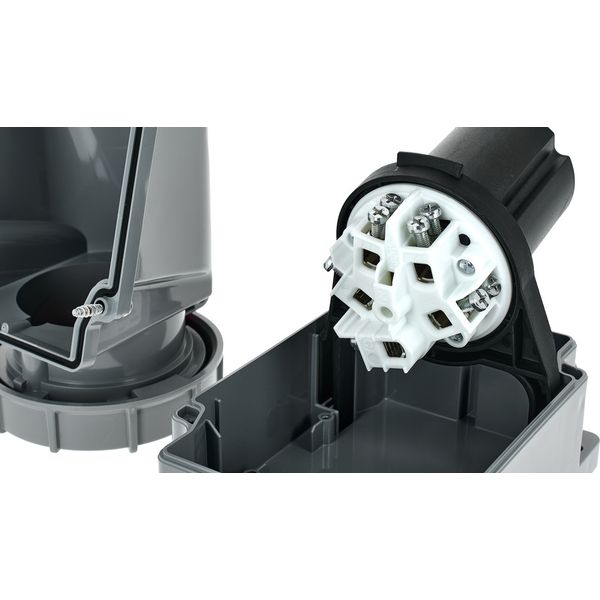

- Connection: Screw connection clamp terminals

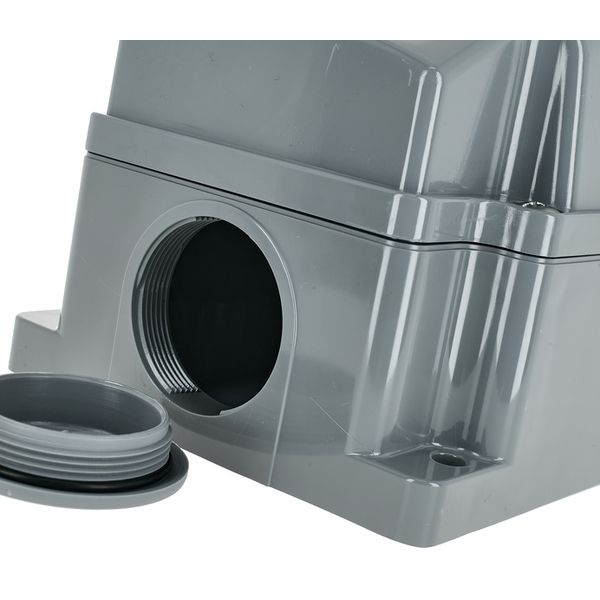

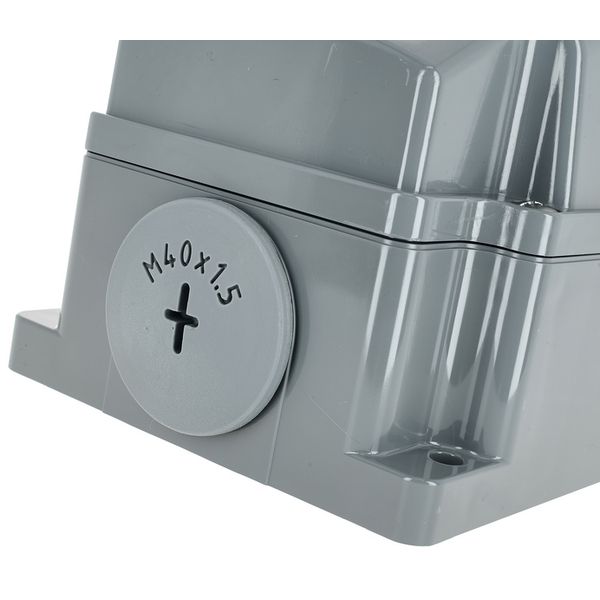

- Housing: Rotates 180° for flexible cable entry
- Standard: Compliant with EN 60309-2
-
Available since November 2025
-
Item number 629002
-
Sales Unit 1 piece(s)
-
Application Wall box
-
Male/Female Female
-
Pol 5
-
Current [A] 63 A
-
Voltage [V] 400 V
-
Connection type Screw Connection
-
Protection type IP67
-
Plug Power Plug CEE 63A 5-pol female
