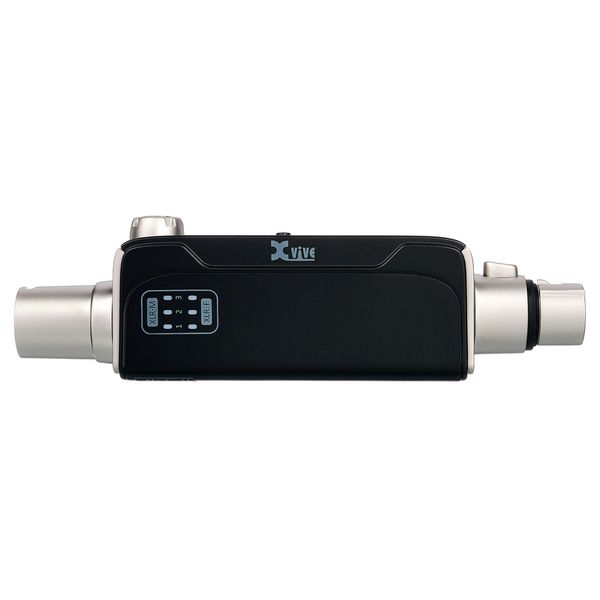

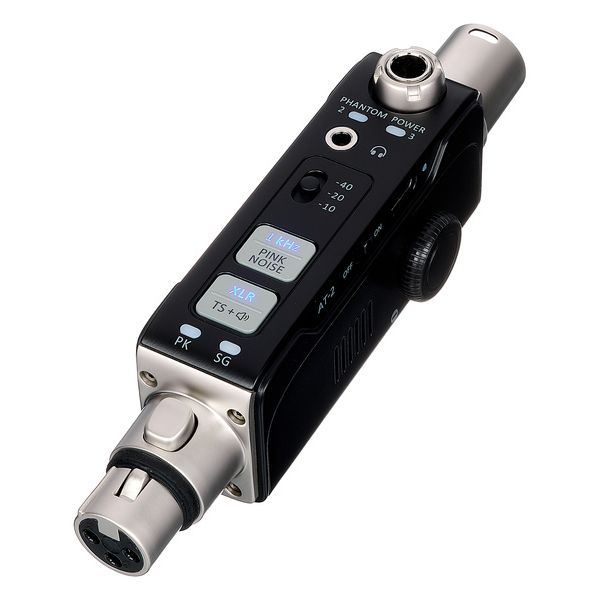

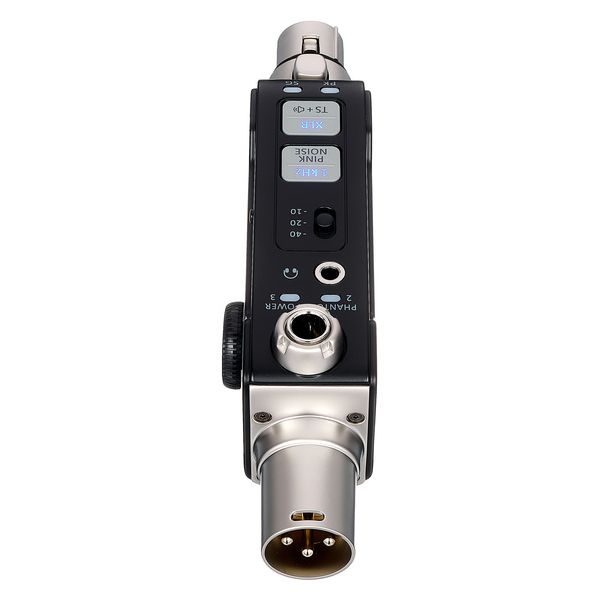

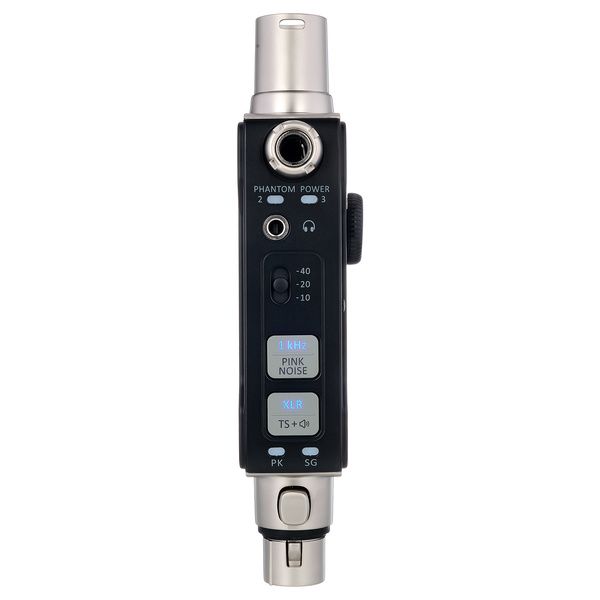

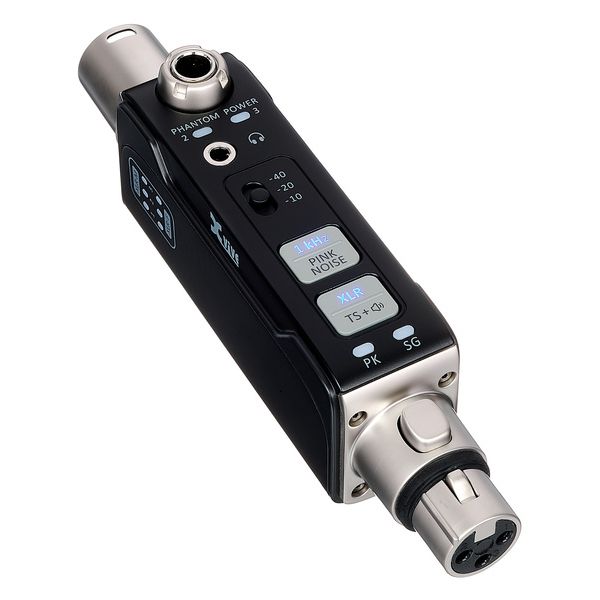

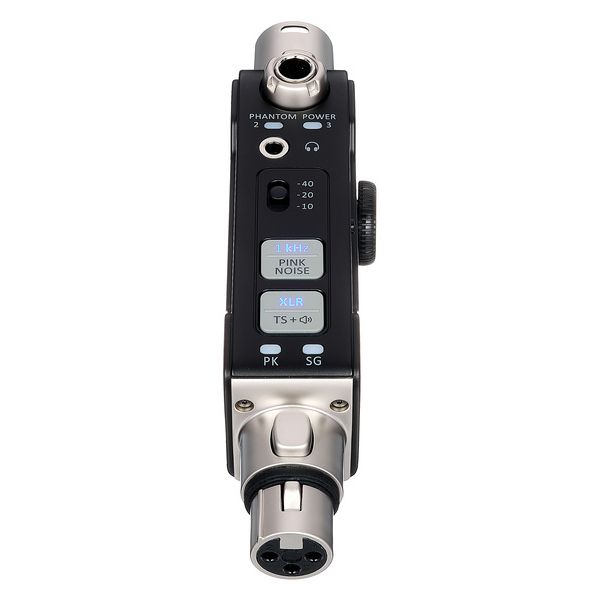

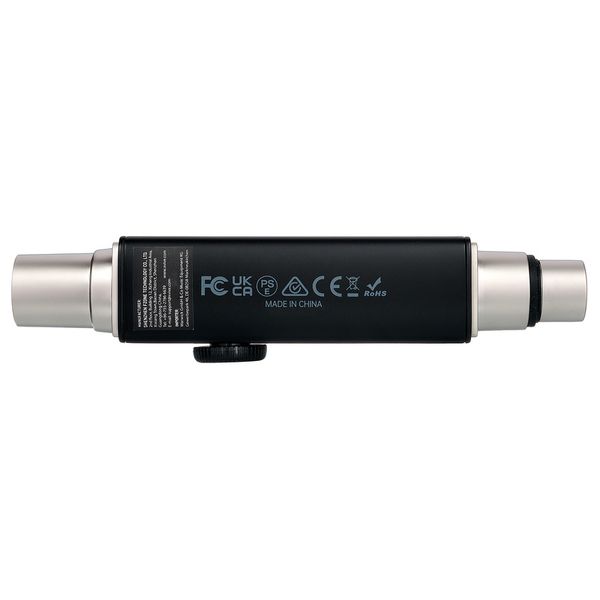

XVive AT-2 Portable Audio Tester
Compact Audio Tester
- Versatile and indispensable testing tool for audio professionals with five main functions
- Suitable for testing PA speakers, effect pedals, cables, DI boxes, IEM systems, mixing consoles and other audio devices

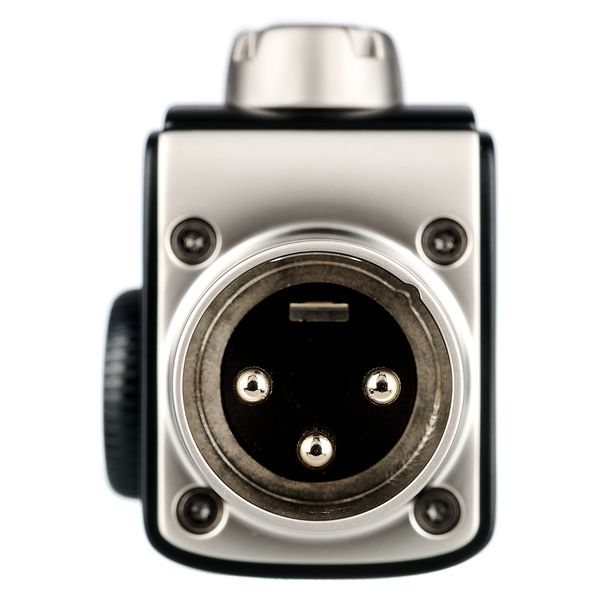

- Signal generator: outputs 1 kHz sine wave signal or pink noise audio signal via the male XLR socket and 6.35 mm / 3.5 mm jack sockets
- Three output level options: -10 dB, -20 dB, -40 dB
- XLR cable tester: checks the proper functioning of all three contacts of an XLR cable with a 3.3 V test voltage

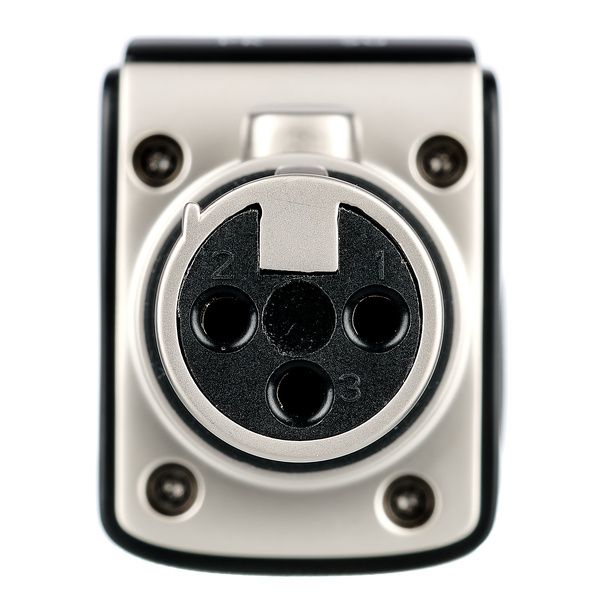

- XLR input measurement: measures input level at the female XLR socket
- -20 dBu - +10 dBu
- Phantom power test: tests phantom voltage and correct functioning of the contacts
- Built-in speakers
- Signal monitoring via headphones or loudspeakers
- Rechargeable lithium battery
- Battery life: approx. 3 hours
- XLr inoput / output
- 3 kOhm input impedance / 350 Ohm output impedance
- 6.35 mm jack input/output, 600 ohm output impedance
- 3.5 mm headphone output

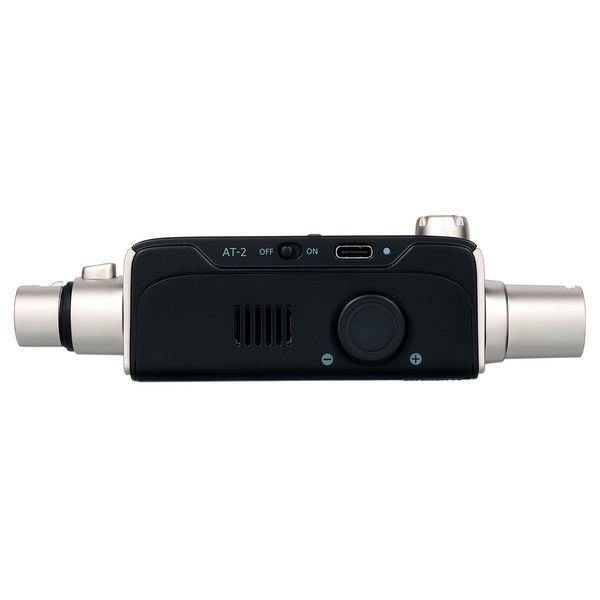

- USB type-C charging port
- Dimensions (L x W x H): 210 x 70 x 110 mm
- Weight: 188 g

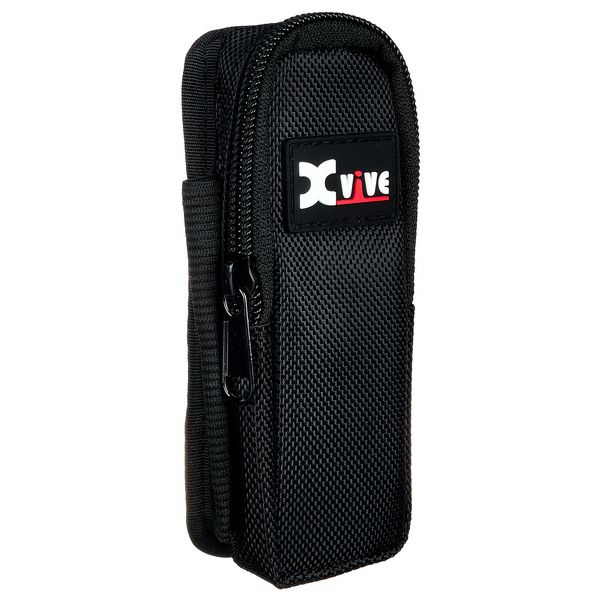

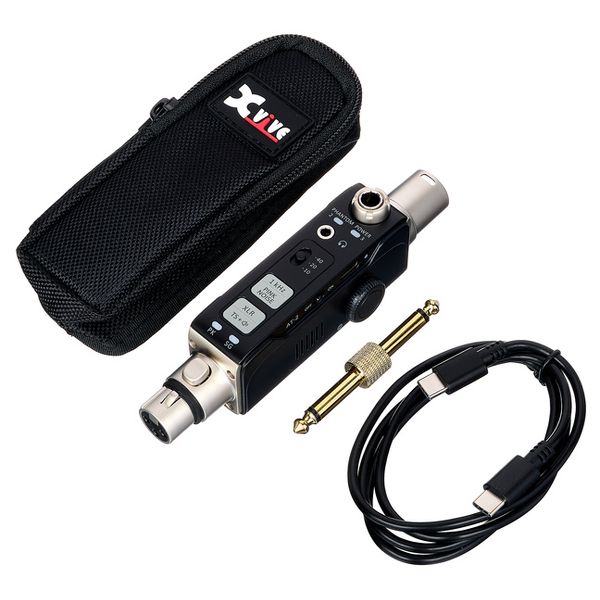

- Includes USB type-C to type-C charging cable, transport bag and 6.35 mm jack adapter
-
Available since January 2026
-
Item number 633801
-
Sales Unit 1 piece(s)
-
Cable Tester Yes
-
Level Meter No
-
Speaker Tester Yes
-
Software No
