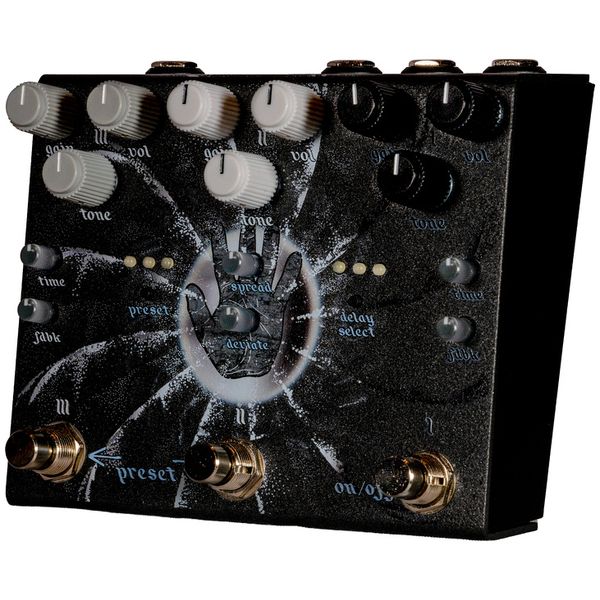

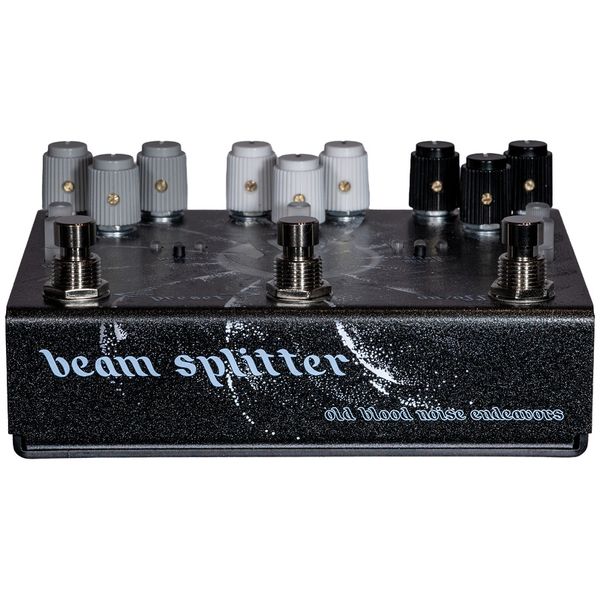

Old Blood Noise Endeavors Beam Splitter V2 Shadow

Effect Pedal for Electric Guitar

• Triple tracking overdrive / distortion
• Compared to its predecessor, the Beam Splitter V2 not only improves the sound but also offers modern features such as MIDI control for all functions, presets, additional expression control and much more
• Inspired by the sound of a guitar recorded multiple times, the single input of the Beam Splitter V2 is split into three outputs, each with a different character and different timing / feel
• Three different overdrive variants, which are coordinated to work well together; two of which can be time-delayed and all three can be operated in parallel
• Whether mono, stereo or a proprietary system termed ‘Trereo’ by OBNE – sounds can be achieved that expand over time and compress dynamically, with a rich, harmonic soundscape, without sacrificing clarity
• Up to three presets on the unit and 127 accessible via MIDI
• Drive 1 – hard-clipping distortion, classic gain sound
• Drive 2 – overdrive with both soft and hard clipping, delivering a light and bright sound
• Drive 3 – transistor overdrive – most dynamic with a fuzz-like gain characteristic

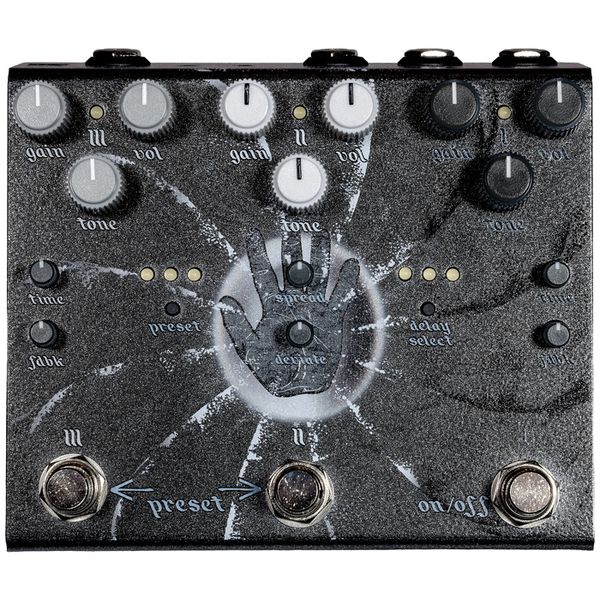

• Controls: Channel I (Gain, Vol, Tone), Channel II (Gain, Vol, Tone), Channel III (Gain, Vol, Tone), 2x Time, 2x fdbk, spread, deviate
• Buttons: Preset, Delay select
• LED: I, II, III
• Footswitch: I, II, III
• Input: TRS/TS (6.3 mm jack)
• Output: TRS/TS (6.3 mm jack)
• MIDI IN: 1/8" jack
• MIDI OUT: 1/8" jack
• USB-C
• Expression TRS: 6.3 mm jack
• Power supply connection: Barrel connector 5.5 x 2.1 mm, centre negative
• Power supply via 9 V DC power supply (not included, suitable power supply: Art. 409939)
• Power consumption: 150 mA
• Switchable true/buffered bypass
• Dimensions (W x D x H): 137 x 110 x 70 mm
• Weight: 551 g
• Handmade in USA
• Colour: Shadow

Note: Battery operation is not supported.
