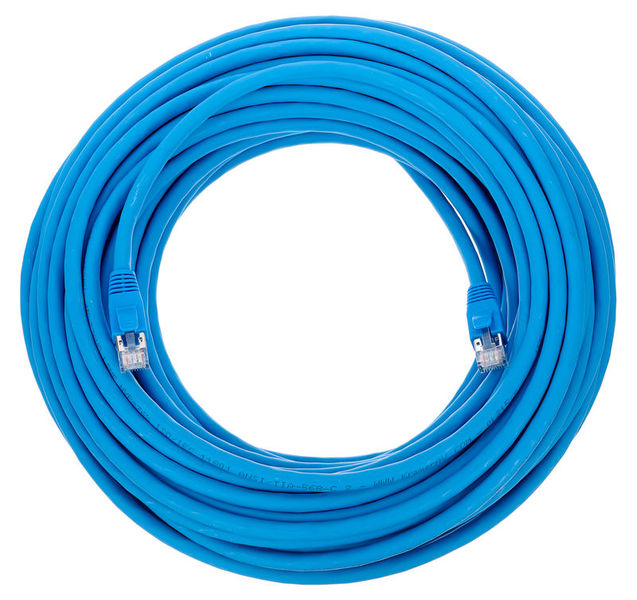

Kramer C-UNIKat-75 Cable 22.9m

Kramer C-UNIKat-75 Cable 22.9 m; KAT 6A U/FTP cable construction for video and LAN; screeningKAT 6A cable suitable for all current signal types; four individually shielded twisted pairs with 23 AWG solid copper conductors lie together in an unshielded outer jacket and conduct DGKat technology, 4K HDBaseT technology or LAN signals; Optimised for Kramer hardware: Use with all Kramer digital twisted pair sets transmitters and receivers (DGKat™ and HDBaseT); High quality shielded RJ-45 connectors (with 50 µ gold plated contacts); Conductors: 4 x 2 x 23 AWG, annealed copper; Diameter: 0.56 ± 0.01 mm; Insulation material: Skin/foam/skin HDPE; Diameter: 1.33 ± 0.1 mm; Colour: Per TIA/EIA 568-B; Shielding: Alu/PET per pair (Alu outside); Co-wire: 90 % tinned copper, Ø: 0.4 ± 0.01 mm; Sheath: LSHF, blue RAL5012; Outer diameter: 7.2 ± 0.2 mm; Max. Tensile load: 100 N; Bending radius: 6 cm; Temperatures: Operation: -20 to +60 °C / Storage, transport, installation: 0 to 50 °C; Electrical standard: TIA/EIA 568-B, ISO/IEC 11801; Fire protection: IEC 60332-; Smoke density: IEC61034; Halogen-free: IEC 60754; Impedance:; 1-100 MHz: 100 ± 15 Ohm, 100-250 MHz: 100 ± 20 Ohm, 250-500 MHz : 100 ± 50 Ohm; Propagation smoothness: 76 %; Mutual pair capacitance: <=42 pF/m; Pair/earth capacitance: <= 1500 pF/km; Max. line resistance: 79.8 Ohm. Line resistance: 79.8 Ohm/km; Pair resistance unbalanced: DC <1.5 %; Dielectric strength: 2.5 kV DC (2s); Insulation resistance: > 5000 MOhm/km; Supply voltage: 30 V; Length: 22.9 m

Further Information

Length (in m) 22,9 m
Cable Color Blue
Active Cable No
Show variations of this product
Kramer C-UNIKat-75 Cable 22.9m
Kramer C-UNIKat-75 Cable 22.9m

Kramer C-UNIKat-75 Cable 22.9 m; KAT 6A U/FTP cable construction for video and LAN; screeningKAT 6A cable suitable for all current signal types; four individually shielded twisted pairs with 23 AWG...

Kramer C-UNIKat-50 Cable 15.2m
Kramer C-UNIKat-50 Cable 15.2m

Kramer C-UNIKat-50 Cable 15.2 m; KAT 6A U/FTP cable construction for video and LAN; screeningKAT 6A cable suitable for all current signal types; four individually shielded twisted pairs with 23 AWG...

Kramer C-UNIKat-164 Cable 50.0m
Kramer C-UNIKat-164 Cable 50.0m

Kramer C-UNIKat-164 Cable 50.0 m; KAT 6A U/FTP cable construction for video and LAN; screeningKAT 6A cable suitable for all current signal types; four individually shielded twisted pairs with 23 AWG...

Kramer C-UNIKat-328 Cable 100.0m
Kramer C-UNIKat-328 Cable 100.0m
to the product
kr1,325

Kramer C-UNIKat-328 Cable 100.0 m; KAT 6A U/FTP cable construction for video and LAN; screeningKAT 6A cable suitable for all current signal types; four individually shielded twisted pairs with 23...

Kramer C-UNIKat-35 Cable 10.7m
Kramer C-UNIKat-35 Cable 10.7m

Kramer C-UNIKat-35 Cable 10.7 m; KAT 6A U/FTP cable construction for video and LAN; screeningKAT 6A cable suitable for all current signal types; four individually shielded twisted pairs with 23 AWG...

Kramer C-UNIKat-10 Cable 3.0m
Kramer C-UNIKat-10 Cable 3.0m

Kramer C-UNIKat-6 Cable 3.0 m; KAT 6A U/FTP cable construction for video and LAN; screeningKAT 6A cable suitable for all current signal types; four individually shielded twisted pairs with 23 AWG...

Kramer C-UNIKat-100 Cable 30.5m
Kramer C-UNIKat-100 Cable 30.5m

Kramer C-UNIKat-100 Cable 30.5 m; KAT 6A U/FTP cable construction for video and LAN; screeningKAT 6A cable suitable for all current signal types; four individually shielded twisted pairs with 23 AWG...

Kramer C-UNIKat-15 Cable 4.6m
Kramer C-UNIKat-15 Cable 4.6m

Kramer C-UNIKat-15 Cable 4.6 m; KAT 6A U/FTP cable construction for video and LAN; screeningKAT 6A cable suitable for all current signal types; four individually shielded twisted pairs with 23 AWG...

Kramer C-UNIKat-25 Cable 7.6m
Kramer C-UNIKat-25 Cable 7.6m

Kramer C-UNIKat-25 Cable 7.6 m; KAT 6A U/FTP cable construction for video and LAN; screeningKAT 6A cable suitable for all current signal types; four individually shielded twisted pairs with 23 AWG...

Kramer C-UNIKat-2 Cable 0.6m
Kramer C-UNIKat-2 Cable 0.6m

Kramer C-UNIKat-2 Cable 0.6 m; KAT 6A U/FTP cable construction for video and LAN; screeningKAT 6A cable suitable for all current signal types; four individually shielded twisted pairs with 23 AWG...

Kramer C-UNIKat-6 Cable 1.8m
Kramer C-UNIKat-6 Cable 1.8m

Kramer C-UNIKat-6 Cable 1.8 m; KAT 6A U/FTP cable construction for video and LAN; screeningKAT 6A cable suitable for all current signal types; four individually shielded twisted pairs with 23 AWG...

kr366
Plus kr200 shipping

Since we ship from Germany, additional costs through taxes and customs may be incurred

Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times

Delivery approx. between Wednesday, 30.06. and Friday, 2.07.
