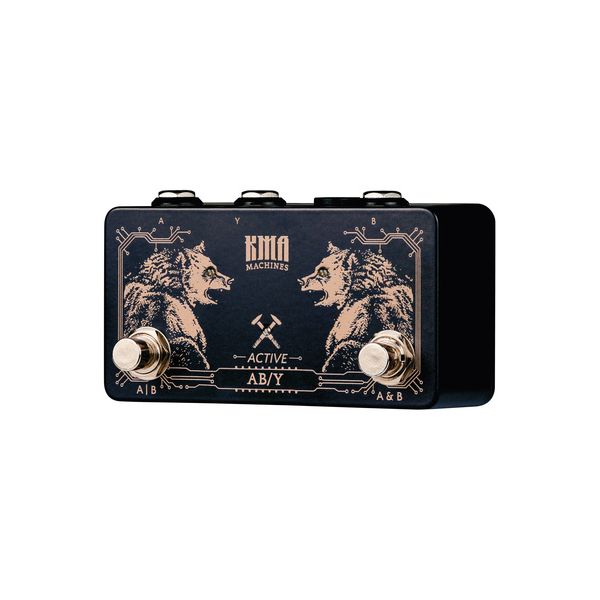

KMA Audio Machines Active AB/Y Switch B-Stock
Effect Pedal for Electric Guitar and Electric Bass
- Switches or combines a mono input signal to two separate outputs
- Switches or combines two separate input signals to one output
- Phase and Y direction switch for greater flexibility
- Active noiseless relay-based switching reduces mechanical noise and unwanted clicks
- True bypass
- Switch: Phase, Y Direction (Y->AB / AB->Y)
- Foot switch: A / B, A and B
- LED: A, B ,Y
- A input: 6.3 mm mono jack
- B input: 6.3 mm mono jack
- Y output: 6.3 mm stereo jack
- Current consumption: 40 mA
- Power supply via 9 V DC mains adapter (2.1 x 5.5 mm barrel connector, centre negative) - suitable mains adapter Art. 409939 (not included)
- Durable, compact housing
- Dimensions (W x D x H): 112 x 65 x 56 mm
- Weight: 180 g
- Handmade in Germany
Note: Battery operation not supported.
-
Available since December 2025
-
Item number 643376
-
Sales Unit 1 piece(s)
