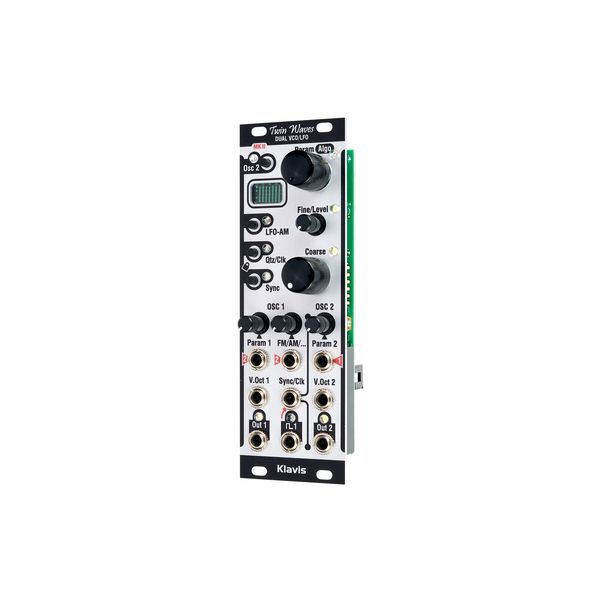

Klavis Twin Waves MKII B-Stock
Eurorack Module
- Digital Dual VCO/LFO
- Both oscillators can be used as VCO or LFO
- Functions in VCO mode: V/Oct tracking over 10 octaves, through zero and linear FM, sub-octave output, hard & soft, ynchronisation
- Quantiser with different scales
- 20 Synthesis algorithms e.g. wave shaping, phase modulation, unison oscillators, oscillator sync (with phantom oscillator), additive synthesis, bit reduction, ring modulator, noise with filter and more
- Functions in LFO mode: simultaneous signal and trigger outputs, external synchronisation, wave shaping, phase modulation, random algorithms
- Display with contextual symbols and help text
- Automatic saving of all settings
- 3 CV inputs with attenuators
- V/Oct. and Sync inputs
- Signal outputs for both channels and separate pulse output
- Current consumption: 52 mA (+12 V) / 17 mA (-12 V)
- Width: 8 HP
- Depth: 21 mm
-
Available since November 2020
-
Item number 555062
-
Sales Unit 1 piece(s)
