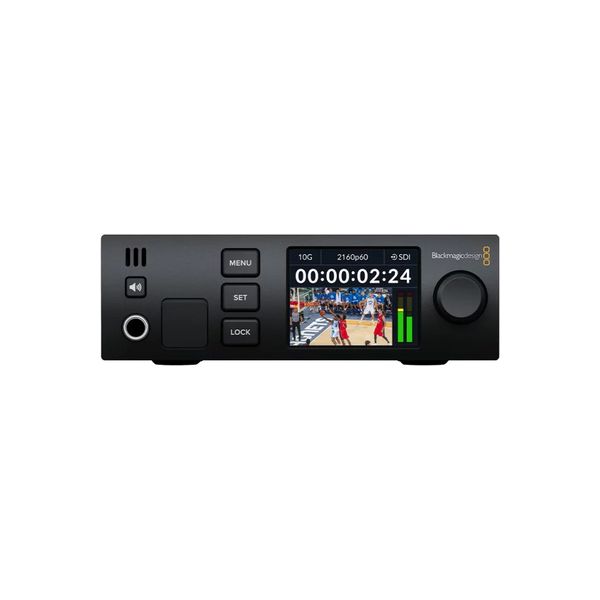

Blackmagic Design 2110 IP UpDownCross 12 B-Stock

Professional Standards Converter

• Can convert between all devices with SMPTE-2110 IP video, 12G-SDI and HDMI video connections
• Conversions between all SD, HD or Ultra HD video standards, as well as from a reference input for integrated re-synchronisation
• Computer interface: USB-C for webcam output, updates and configuration
• Local audio monitoring: Speakers on the front panel with on/off button and 1 x 6.35 mm headphone jack
• Screens: Integrated 2.2-inch LCD for monitoring video, audio and status, as well as for menu settings
• Compatible operating systems: Mac 13.0 Ventura
• Mac 14.0 Sonoma or higher / Windows 10 and 11
• Power supply: 1 integrated AC power supply for 100–240 V, 50/60 Hz
• Power connections: 1 IEC-C14 connection (mains cable not included)
• 1 x 12V DC connection (power supply not included)
• Power consumption: max. 30 W
• Dimensions: 140 x 46.3 x 227 mm
• Weight: 1 kg

Connections:&

• SDI inputs: 1
• SDI loop outputs: 1
• SDI outputs: 2
• SDI rates: SD, 1,5 G, 3 G, 6 G und 12 G
• HDMI 2.0 video outputs: 1
• SMPTE 2110 input / output: 1x 10G ethernet port
• SMPTE ST 2110 IP Audio Inputs/Outputs: 16 embedded audio channels in ST-2110 IP video inputs via 10G Ethernet
• SDI audio inputs: 16 embedded audio channels
• SDI audio outputs: 16 embedded audio channels
• HDMI audio inputs: 8 embedded audio channels
• HDMI audio outputs: 8 embedded audio channels
• Analogue audio outputs: 1x 6.35 mm headphone jack
• Webcam outputs: 1 USB-C for up to 1080p/60
• Reference in: 1
• Reference out: 1
• Ethernet: Ethernet supports 10/100/1000/10G Base-T for SMPTE 2110 IP video inputs and outputs, configuration and software updates
