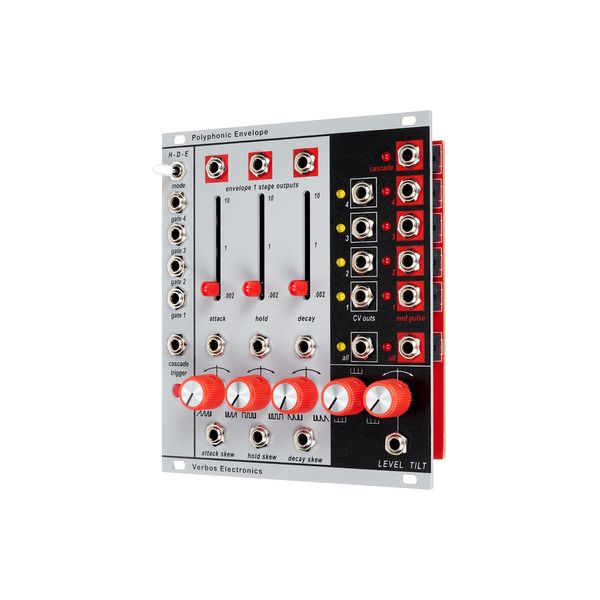

Verbos Electronics Polyphonic Envelope B-Stock
Eurorack Module
- Four AHD envelopes (attack, hold, decay) that can be used individually or cascaded
- Fader for attack, hold and decay time (range: 0.002s - 10s) of all four envelopes, each with CV input
- Skew control with CV input for attack, hold and decay (compression or stretching of the segments for envelopes 2-4)
- Level-Tilt control with CV input and attenuator to control envelope levels (max. 10V)
- Cascade mode with trigger input, trigger button and 3 selectable modes
- Per envelope: gate input, CV output and end pulse output
- Additional CV and pulse outputs for the sum of all envelopes
- Stage gate outputs for envelope 1
- Power consumption: 75mA (+12V) / 30mA (-12V)
- Width: 22 U
- Depth: 23 mm
-
Available since March 2023
-
Item number 642162
-
Sales Unit 1 piece(s)
-
Width 22 TE / HP
