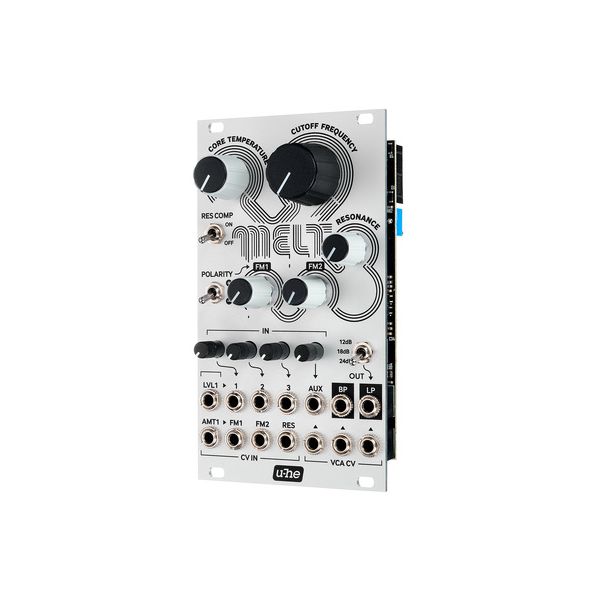

u-he MELT B-Stock
Eurorack Module
- Analogue cascade low-pass filter
- Variable filter response via core temperature control
- Additional bandpass output
- Selectable slope for low-pass output: 12 dB/oct, 18 dB/oct or 24 dB/oct.
- Bass drop/resonance compensation switch
- Separate output VCAs for low-pass and band-pass outputs
- 3 audio inputs with individual volume controls
- Input 1 with integrated VCA
- 2 frequency CV inputs (FM1 and FM2) with attenuators
- FM1 with integrated VCA and polarity reversal
- Resonance CV input
- Aux input for feeding unfiltered signals into the signal path downstream of the filter
- Aux input with level control and VCA
- Suitable for sound design, dynamic filter sweeps and complex modulation routings
- Current consumption: 70 mA (+12 V) / 70 mA (-12 V)
- Widht: 14 HP
- Depth: 32 mm (includes ribbon cable)
-
Available since August 2026
-
Item number 655343
-
Sales Unit 1 piece(s)
