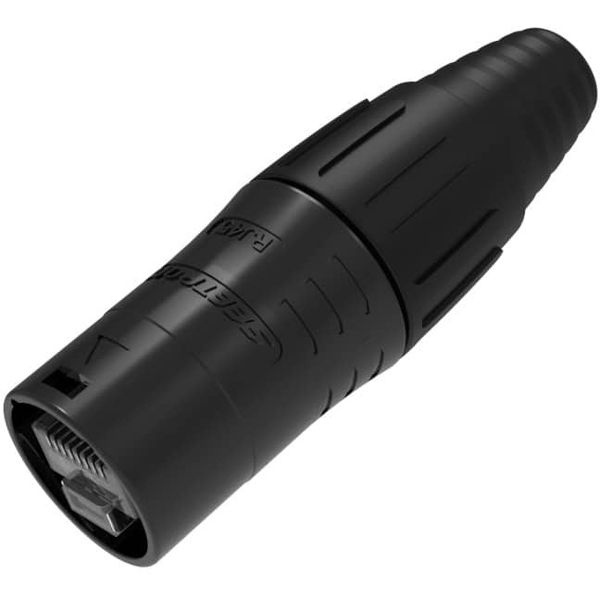

Seetronic SE8MC-1-32-B RJ45 plug
RJ45 Cable Carrier Connector
- With a robust, chrome-plated die-cast housing
- Cable carrier connector without RJ45 plug (compatible with standard RJ45 plugs)
- Supports RJ45 with a dovetail clip as well as standard RJ45 plugs
- Suitable for cable diameters of 5 – 7.5 mm
- Sleek design to protect Ethernet connections in professional applications
- Reliable cable clip for a secure hold
- Locking system (latch) for a secure connection
- Colour: Black
Technical data:
- Connector type: RJ45 (male)
- Insertion force: = 20 N
- Withdrawal force: = 20 N
- Durability: > 1,000 insertion cycles
- Housing material: Zinc alloy
- Chrome-plated
- Boot: PA (polyamide)
- Temperature range: -30 °C to +80 °C
-
Item number 643143
-
Sales Unit 1 piece(s)
-
Plug Yes
-
Connector Plug No
-
Adapter No
-
Connector Type RJ45
-
Plug RJ45 male
