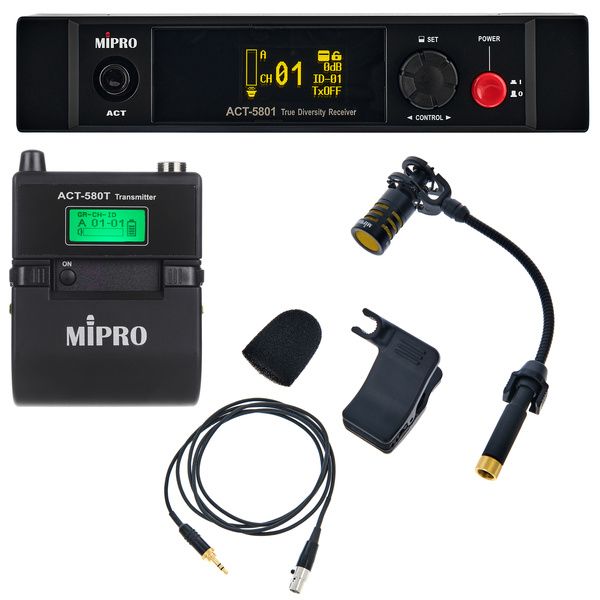

Mipro ACT-5800 SM-10A Brass Bundle
Bundle offer comprising

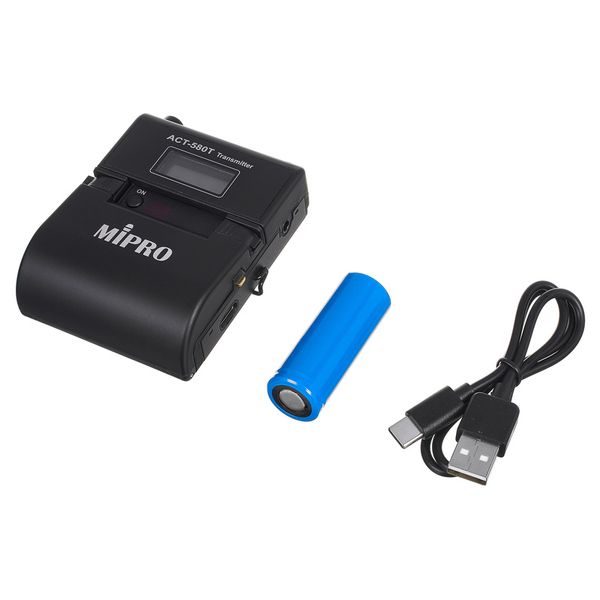

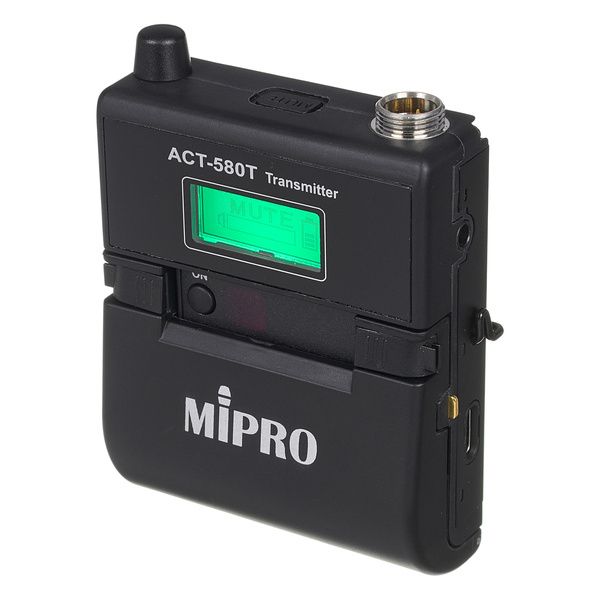

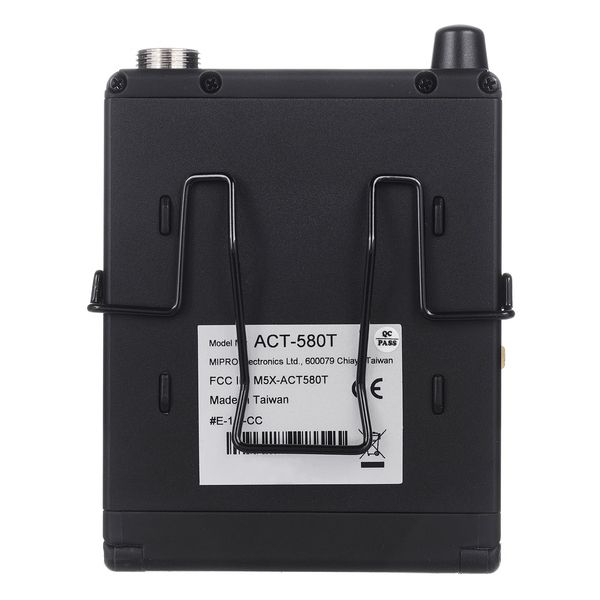

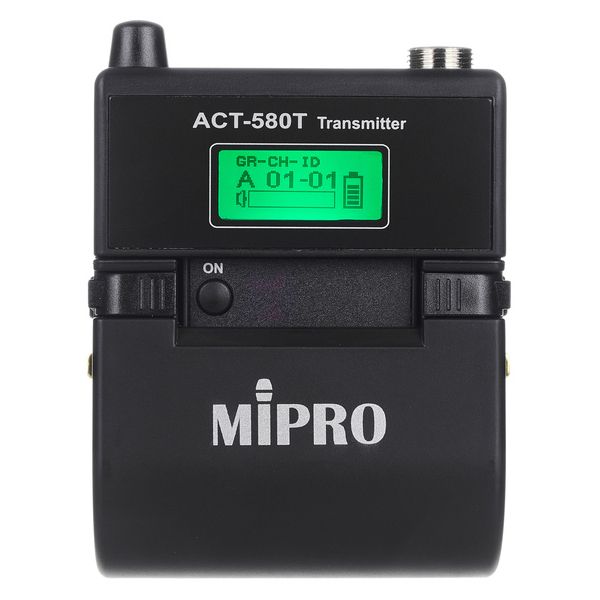

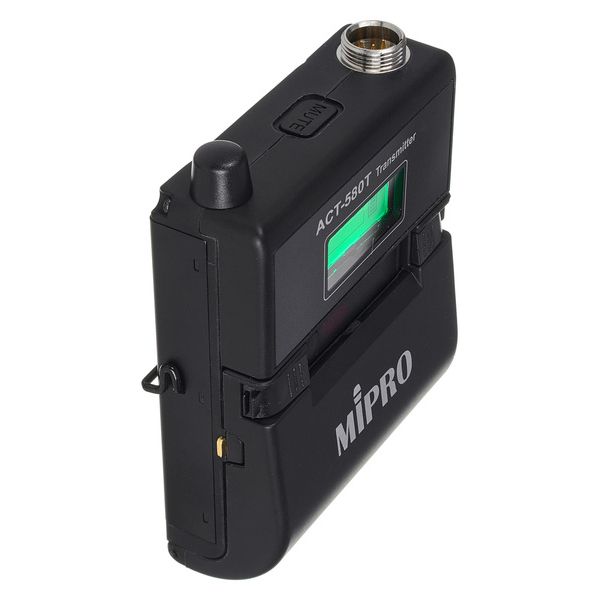

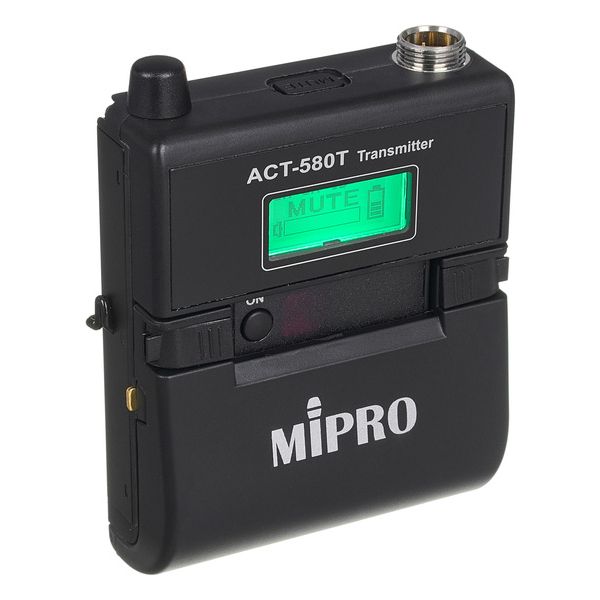

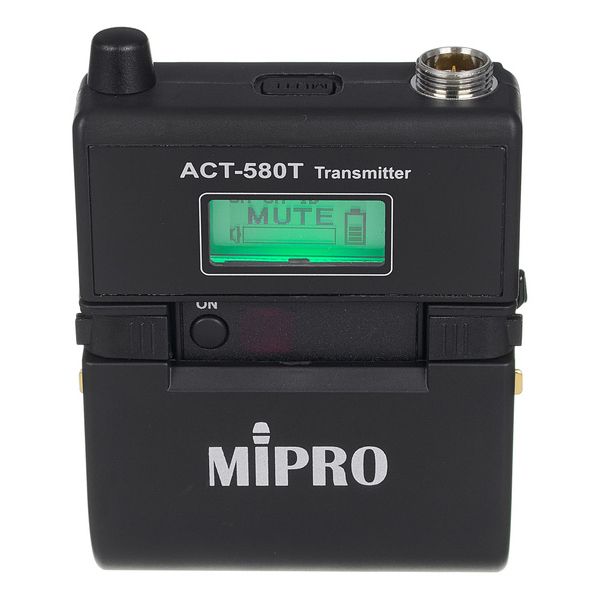

Mipro ACT-580T
Digital 5.8 GHz Pocket Transmitter
- Frequency range: 5,725 - 5,850 MHz
- 4-pin mini XLR input with screw lock
- Input impedance for microphone and guitar (high/low) and input sensitivity of the microphone used can be adjusted - five levels: +12 dB to -12 dB
- 3.5 mm mini jack socket for connecting an external mute switch Mipro MJ-70 (optionally available)
- Backlit LCD display shows channel, gain, RF output power, mute, battery status, lock and error information
- Power supply via two AA batteries or one 18500 Li-ion battery (included)
- USB-C port for charging the battery in the housing
- Battery life up to 12 hours
- Weight: 82 g
- Includes rechargeable battery and USB-C charging cable

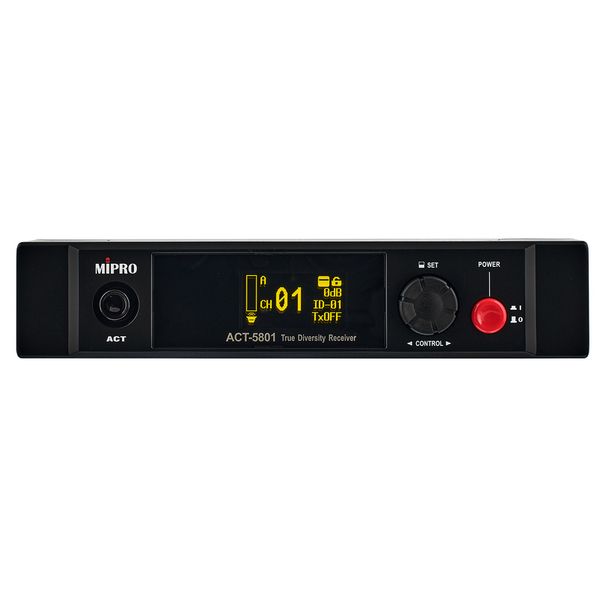

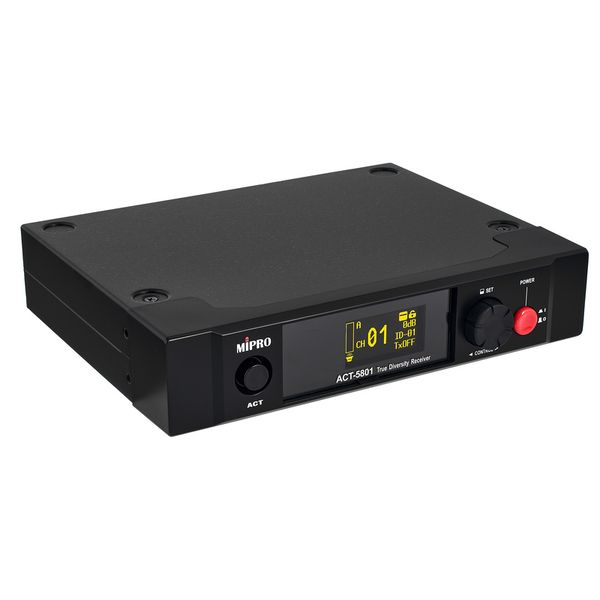

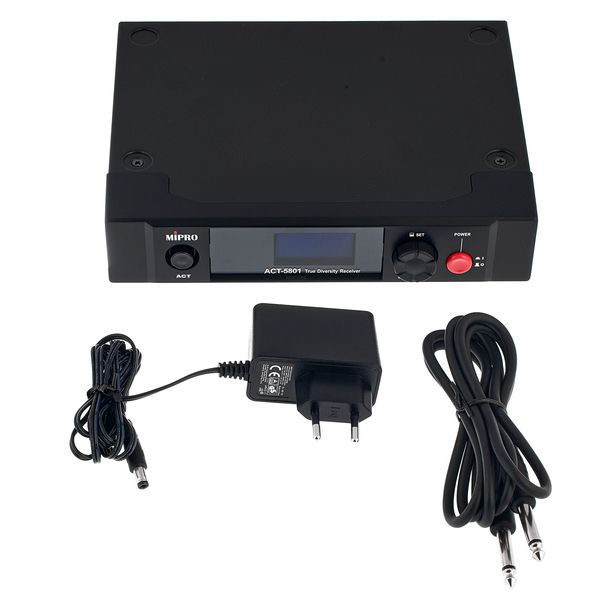

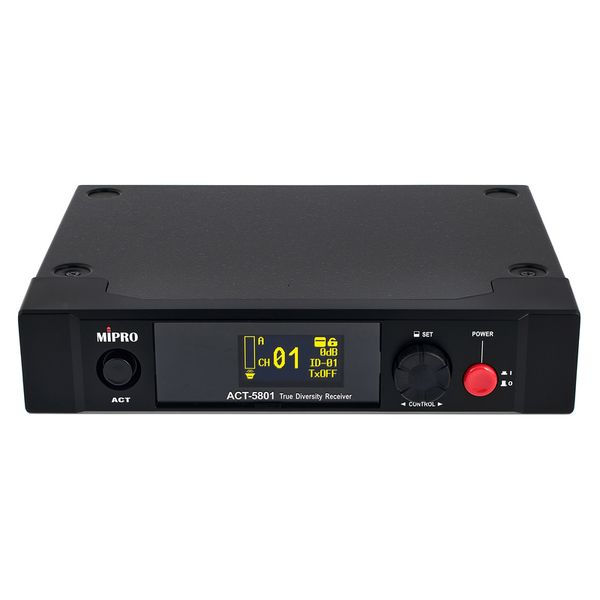

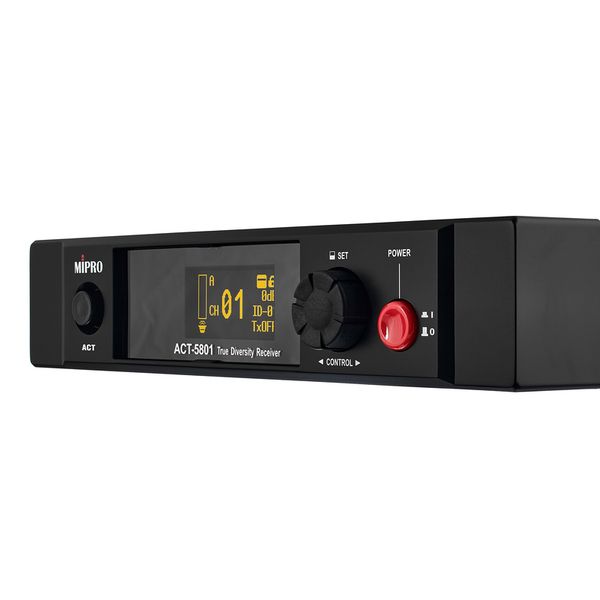

Mipro ACT-5801
Digital True Diversity 5.8 GHz receiver with integrated antennas
- Frequency range: 5,725 - 5,850 GHz
- 12 Interference-free channels in group A
- 24 Interference-free channels in group B1 & B2
- Range up to 100 metres
- Latency < 1.7 ms
- OLED display
- Due to the use of FHSS frequency-hopping technology, each channel operates on 4 pre-set hopping frequencies
- Programmed algorithm searches frequency band for interference-free frequencies (avoids frequencies of WiFi applications)
- Balanced XLR and unbalanced jack output
- Rack mounting possible using optional rack kits Mipro FB-71/FB-72
- Dimensions (W x H x D): 210 x 44 x 180 mm
- Weight: 0.75 kg
- Colour: Black
- Includes power supply and 6.3 mm jack cable

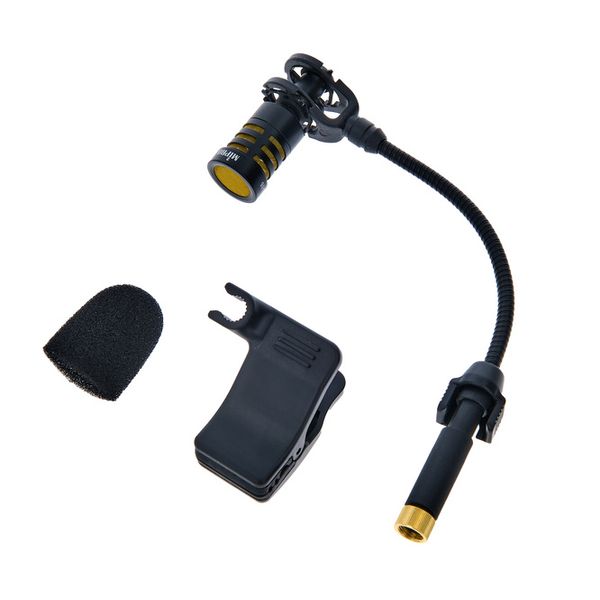

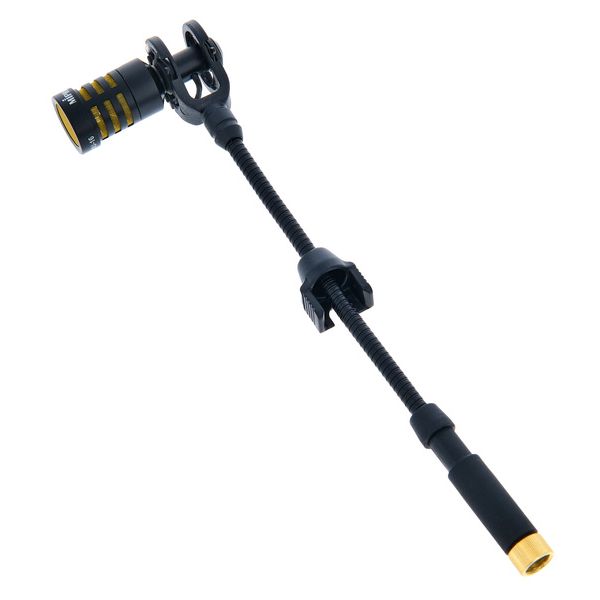

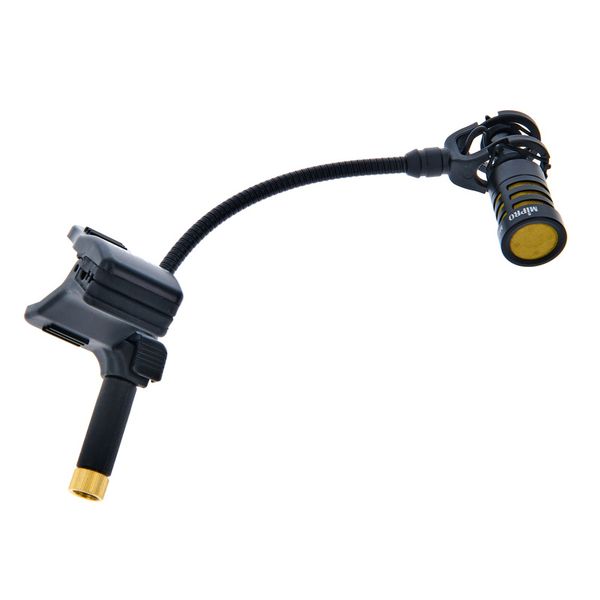

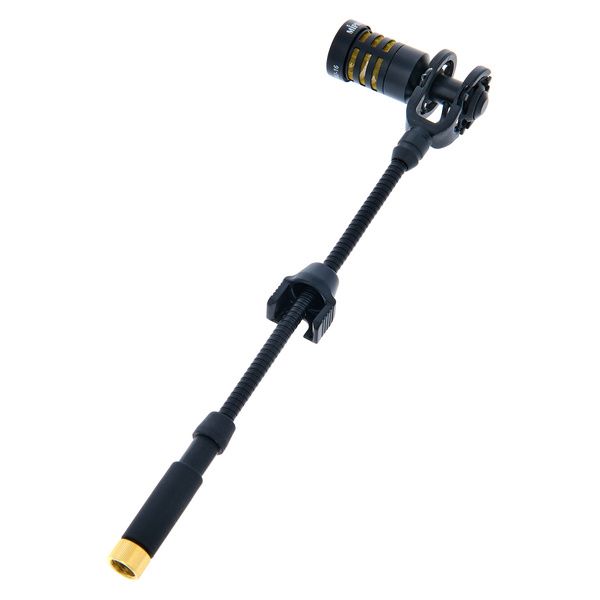

Mipro SM-10A
Clip-On Microphone for Brass and Woodwind Instruments
- Condenser capsule: 10 mm
- Polar pattern: Cardioid
- Frequency response: 65 Hz - 20,000 Hz
- Sensitivity: -52dB
- Max. SPL: 142 dB
- Connection: 3.5 mm mini jack socket with thread for MT-58 and SC-58 cables
- Dimensions (D x L): 10 x 197 mm
- Weight: approx. 57 g
- Colour: Black
- Contents of deliverty: SH-32 holder and MU-16 microphone capsule

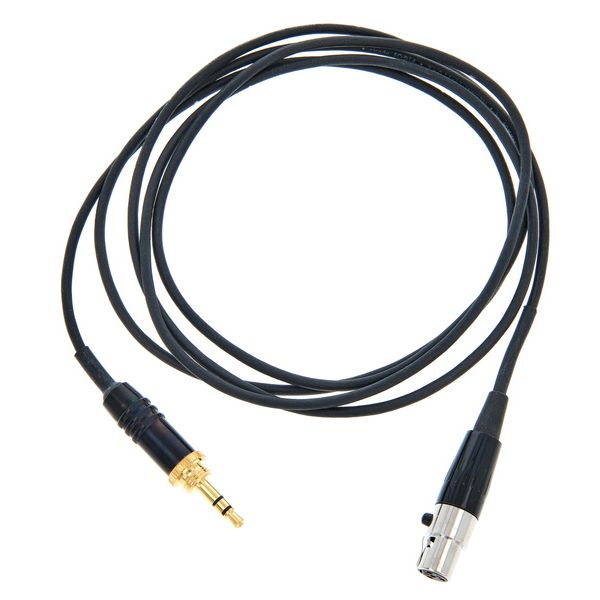

Mipro SC-58
Saxophone Microphone Cable
- 4-pin mini-XLR (Mipro pin assignment) to 3.5 mm jack plug
- Cable length: 1.2 m
- Colour: Black
-
Available since August 2025
-
Item number 623668
-
Sales Unit 1 piece(s)
-
Channels Instrument Microphone 1
-
Transmission System Digital
-
Frequency 5725 MHz – 5850 MHz
-
Receiver Type Stationary
-
Frequency display Yes
-
Removable antenna No
-
Accu Transmitter Optional
-
Charging System Optional
-
Dante No
-
Diversity Yes
-
Transmitter Type Pocket Transmitter
-
Frequency scan Yes
-
Monitoring the battery status Yes
-
Rackkit Optional
-
Output XLR
-
Receiver width in mm 210 mm
-
Receiver height in mm 44 mm
-
Receiver depth in mm 162 mm
-
Receiver weight in kg 0,7 kg
-
Information on the supported frequency ranges
Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.
