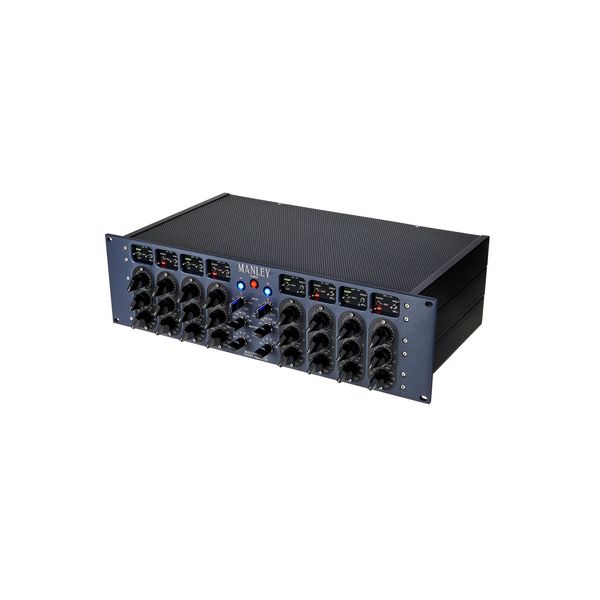

Manley Massive Passive Master B-Stock
Stereo EQ
- Mastering version with stepped potentiometers and changed filters for mastering applications
- 2-Channel EQ
- 4 Bands per channel
- Circuit completely passive
- Overlapping frequency ranges
- Each band offers the possibility of Shelf or Bell
- Each band: Cut, boost and off
- Tube make-up gain
- Passive high-pass and low-pass filter
- Level +4 dBU (can be switched to 10 internally)
- EQ frequency control range: 22 - 27000 Hz
- EQ Boost/cut range: 20 dB boost/20 dB cut
- Frequency range: +/- 2 dB: 8-60,000 Hz
- Maximum output at 1.5% THD dBv +37, +26 dBv at 20 Hz
- THD & Noise (1KHz at +4 dBu): 0.06%
- Noise floor (relative to +4 dBu): -85 DB (A Weight)
- Dynamic range: 120dB
- Bypass switch
- Inputs and outputs as balanced XLR and 6.3 mm TRS
- Weight: approx. 9.5 kg
-
Available since August 2007
-
Item number 324134
-
Sales Unit 1 piece(s)
