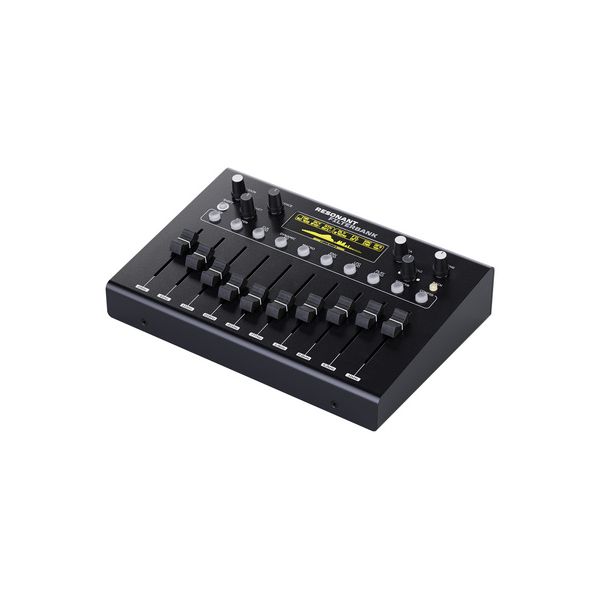

Erica Synths Resonant Filterbank B-Stock

Analogue 10-Band Stereo Filter Bank

• A versatile effects unit for creative sound design, designed to generate unconventional sounds
• Robust desktop enclosure for live and studio applications
• Manual control of the filter bands via knobs or MIDI Control Change commands
• Filter frequencies: 29 Hz, 61 Hz, 115 Hz, 218 Hz, 411 Hz, 777 Hz, 1.5 kHz, 2.8 kHz, 5.2 kHz, 11 kHz
• Slope: 17 dB per decade
• Adjustable resonance characteristic and selectable feedback per band
• Control the resonance manually or via MIDI Control Change commands
• Additional multimode filter mode with low-pass, band-pass, high-pass or notch characteristics
• Spectrum Analyser and Dynamic Spectral Compressor modes: enhanced functionality
• Analogue input gain of up to +24 dB
• 20 separate LFOs and envelope followers
• MIDI clock synchronisation of events
• Memory locations for 128 presets
• Seamless morphing of presets
• OLED display and data encoder
• 2 line inputs: 6.3 mm balanced TRS jack
• 2 line outputs: 6.3 mm balanced TRS jack
• MIDI In / Thru 5-pin DIN socket
• USB-C data port
• Footswitch connection: 6.3 mm T-type jack
• Barrel connector for power supply unit
• Dimensions (W x D x H): 258 x 176 x 70 mm
• Weight: 1.1 kg
• Includes power supply unit (110-220V)
