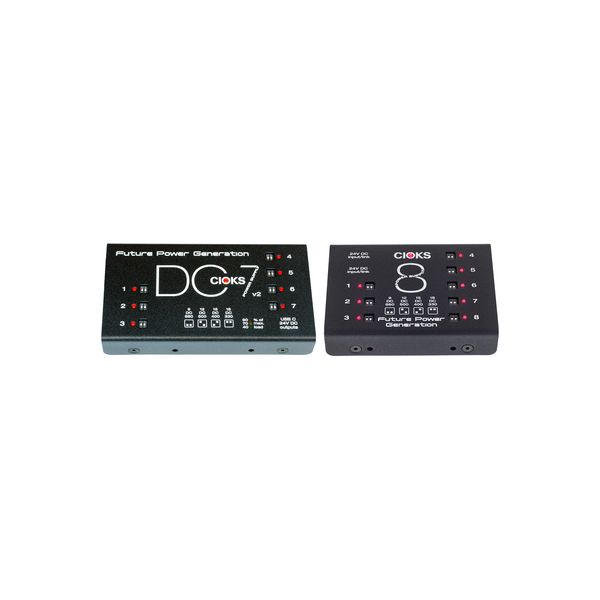

Cioks Superpower Bundle v2 B-Stock

Cioks Superpower Bundle

• DC7 v2 & 8 expanders in a single package, providing a total of 15 isolated high-current outputs, each of which can be individually set to 9/12/15/18 V
• DC7 v2: 7 x isolated DC outputs, 6W each
• 8 expanders: 8 x isolated DC outputs, 6W each
• Each output: 660 mA at 9 V DC
• 4 selectable voltages at each output: 9 V – 660 mA / 12 V – 500 mA / 15 V – 400 mA / 18 V – 330 mA
• 1x 5 V USB-C output, maximum 5 A
• 1 - 24 V input (maximum 2 A)
• Overload status LED
• Maximum total output power: 48 W
• Integrated three LED power meter showing the total load of both power supplies
• Operates on 90–265 V AC
• Compatible with Mini GRIP for drill-free mounting on Pedaltrain boards
• Expandable via separately available 4 Expander Kit or 8 Expander Kit
• Dimensions DC7: 160 x 88 x 25,4 mm (6.3 x 3.5 x 1.00")
• Weight DC7: 500 g
• Dimensions 8 Expander: 120 x 88 x 25.4 mm (4.7 x 3.5 x 1.0")
• Weight 8 Expander: 340 g
• Includes 23x Flex cables, 2 DC Link cable, power supply cable, mounting material for pedal train and Templeaudio boards

Included Flex cables:

• 13x Flex type 1 black with 5.5/2.1 mm centre minus DC plug
• 2x Flex type 2 red with 5.5/2.1 mm centre plus DC plug
• 2x Flex type 4 green with 5.5/2.5 mm centre plus DC plug
• 2x Flex type 5 black with Tip Plus 3.5 mm jack plug
• 2x Split Flex type 1 black with two 5.5/2.1 mm centre negative DC plugs
• 2x 3-Way daisy chain flex type 1 black with three 5.5/2.1 mm centre negative DC plugs
• 2x DC Link cable: 1x L2415 (15 cm) & 1x L2480 (80 cm)
