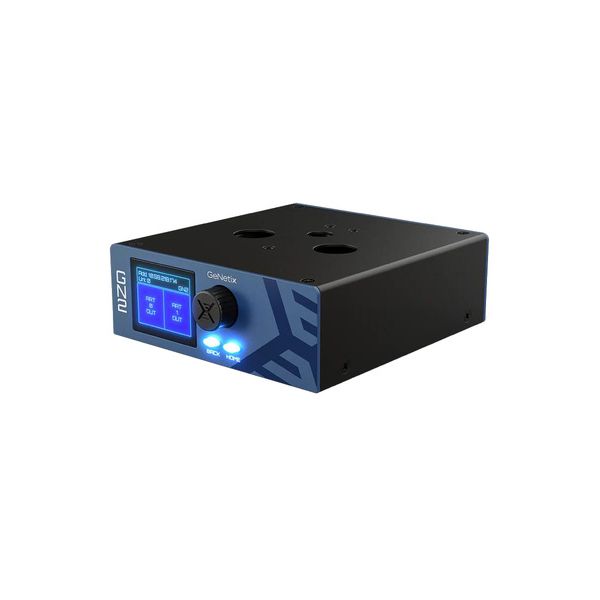

ChamSys GeNetix GN2 2 Port Nod B-Stock
2-Port Ethernet-DMX-Node
- 2 RDM DMX ports for input and output
- Supports Art-Net & sACN
- Web server for remote configuration
- Built-in display and encoder for local configuration
- Switches MagicQ PC systems to 'Reduced Mode' either via USB or network
- Can be powered via USB or PoE (power over ethernet)
- Software specification: Art-Net/sACN support
- ChamNet support
- Configurable DMX timings
- Web Server
- User presets
- DMX redundancy support
- 2 RDM Direct DMX connections
- Network connection
- PoE input (power over ethernet)
- 1 USB-C port
- Dimensions (W x D x H): 125 x 133 x 44 mm
- Weight: 0.85 kg
- Incl. USB-A-C cable and clip for DIN top-hat rail installation
-
Available since February 2024
-
Item number 602373
-
Sales Unit 1 piece(s)
-
Type Ethernet-Interface
-
Type of construction Desktop
-
Connection for PC/Ethernet RJ45 & USB
-
Universes (Outputs) 0
-
DMX-Input 5-pole XLR male
-
RDM-capable Yes
-
Internal memory No
