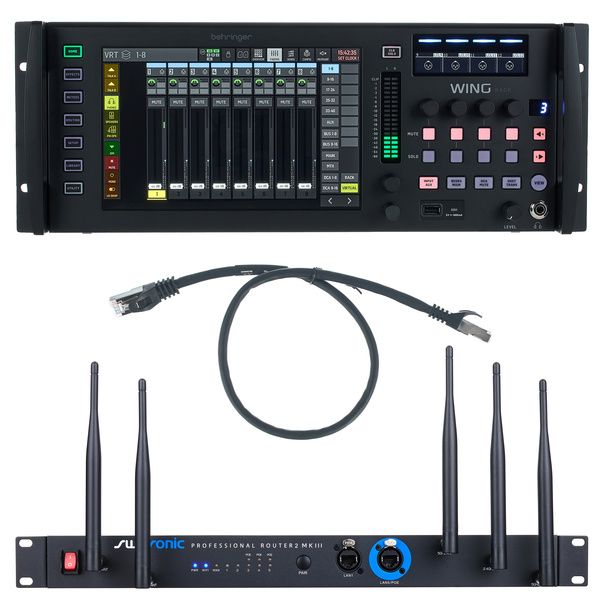

Behringer WING Rack Router Bundle
Bundle offer comprising

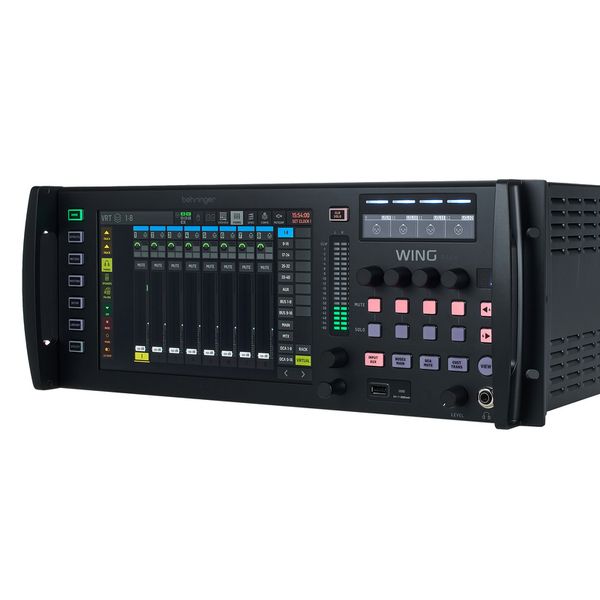

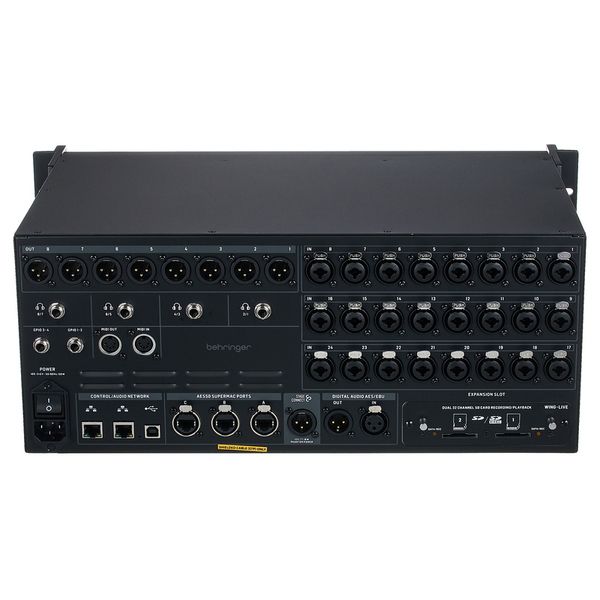

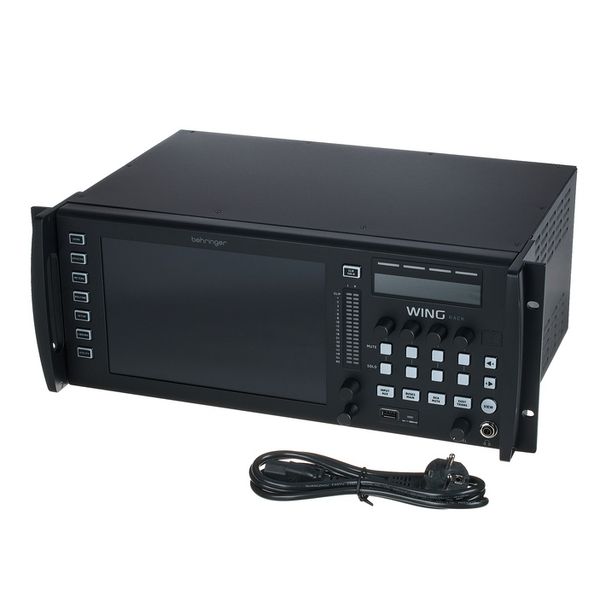

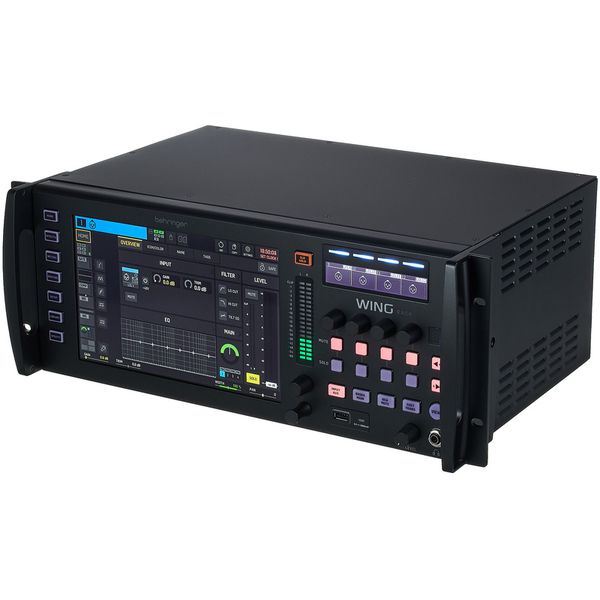

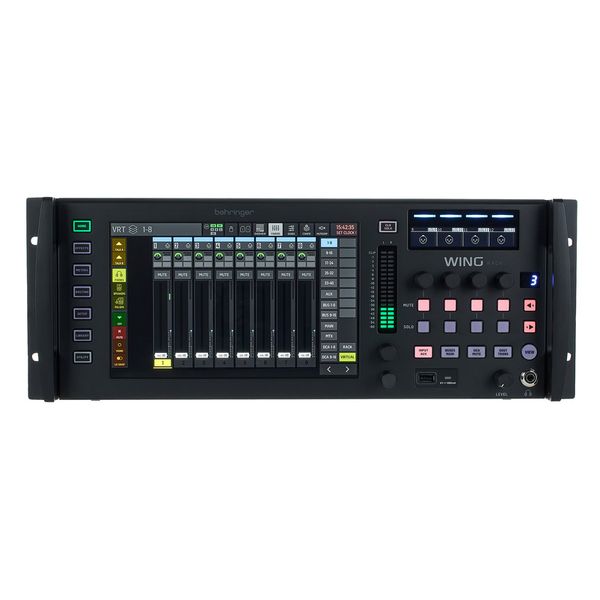

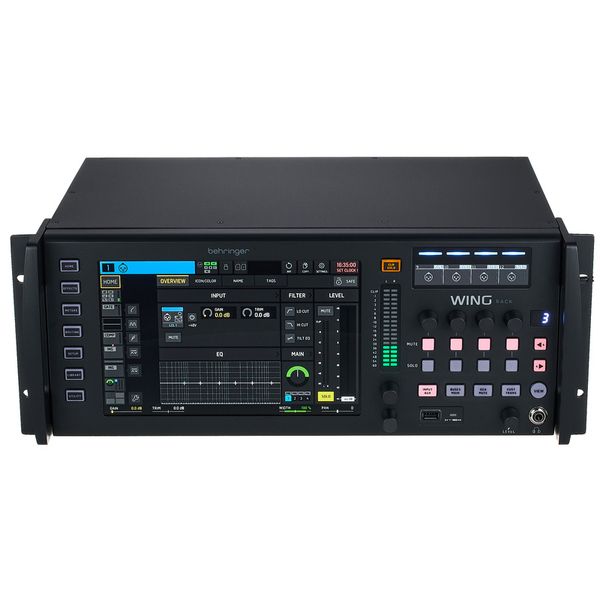

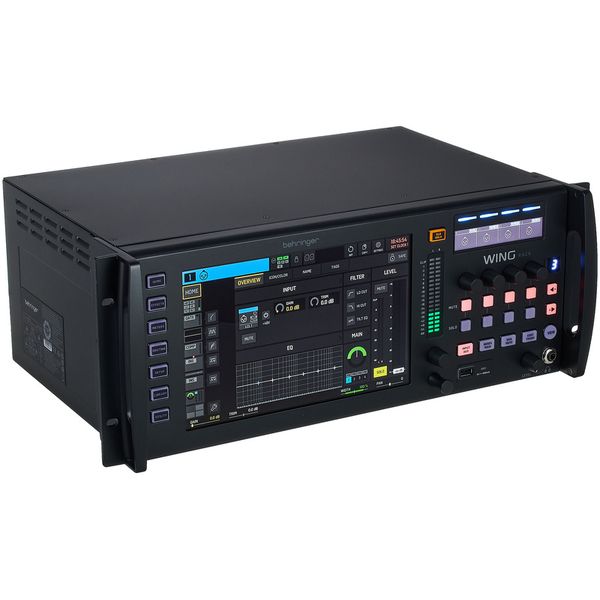

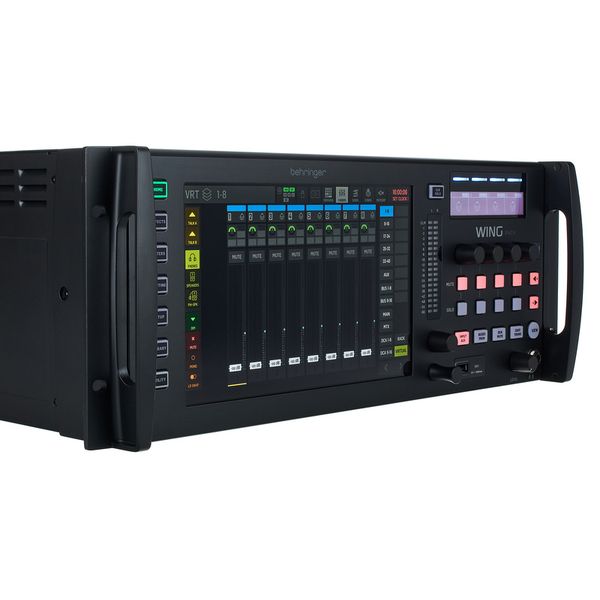

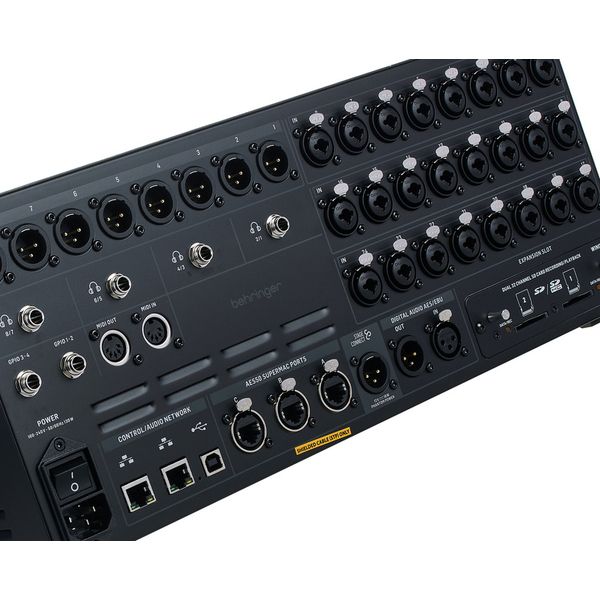

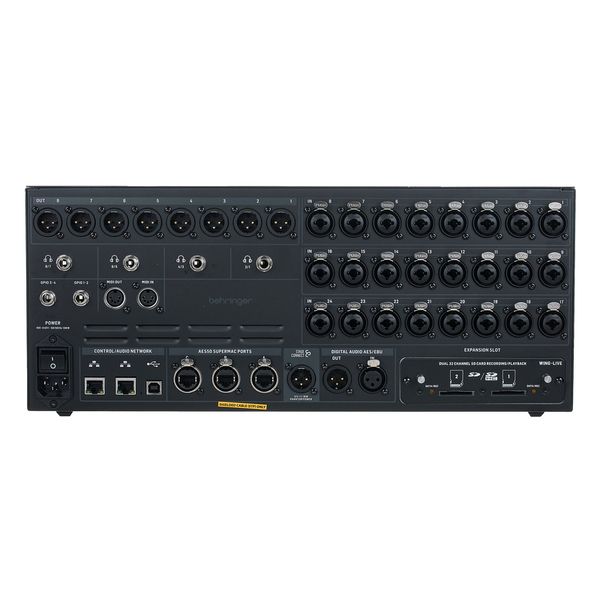

Behringer WING Rack
48-Channel Rack Mount Full Stereo Digital Mixer
- Fully compatible with Behringer X32/Midas M32 consoles and stageboxes
- 28 Buses: 16 stereo aux, 8 stereo matrices, 4 stereo mains
- 8 Buttons and 4 encoders for standard mixing

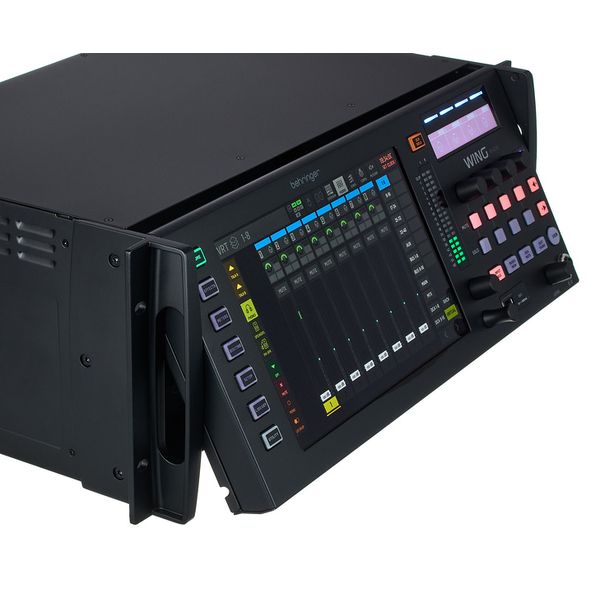

- 10.1" Multi-touch display with adjustable angle
- 24 Midas PRO microphone preamplifiers
- 3 AES50 ports: 144 inputs and outputs
- Built-in USB audio/MIDI interface for 48 audio channels
- Dual SD card live recorder/player with up to 64 tracks
- Internal AoIP module can expand Ethernet ports with optional 64-channel inputs and outputs to Dante and Waves SoundGrid networks
- 16 True stereo effects processors
- 3 Plug-in slots for gate, dynamics and EQ per channel
- 40 Stereo input channels with 5 variable plug-in slots each
- Stereo aux input channels with one FX insert slot and 4-band parametric EQ
- 8 Mute groups and 8 DCAs
- 2 Ethernet ports with built-in switch for networked remote control and optional AoIP via Waves SoundGrid and Dante
- Rear expansion slot for optional 64-channel audio interface and network expansion cards
- StageConnect host interface for sharing up to 32 channels in both directions
- 4 Programmable GPIOs
- 5-Pin MIDI In and Out
- 4 Headphone outputs
- DAW remote control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
- Offline editing and remote control via WING-CoPilot
- WING-Q and WING-Edit software for desktop and mobile
- 19" Rack installation with 4 U
- Dimensions (W x H x D): 486 x 183 x 326 mm
- Weight: 9.4 kg

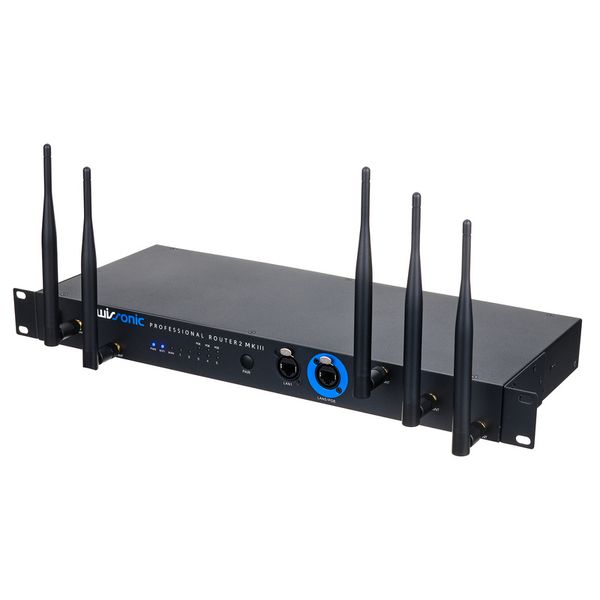

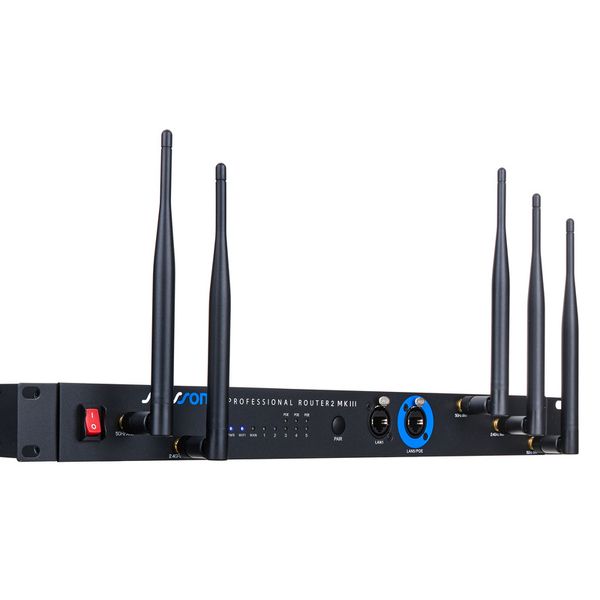

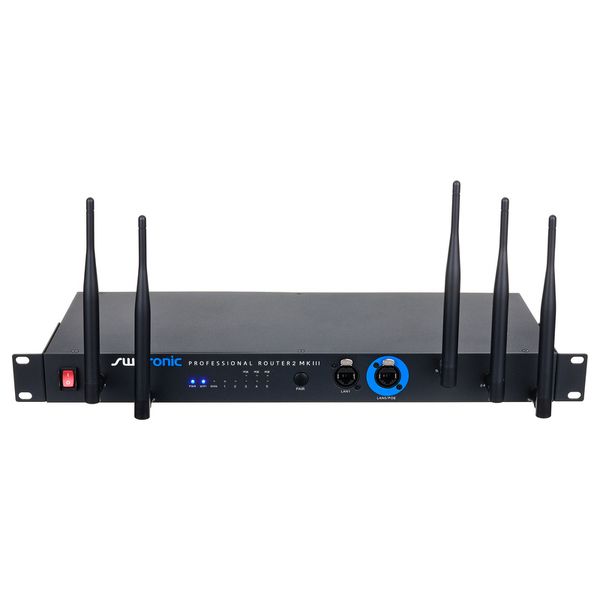

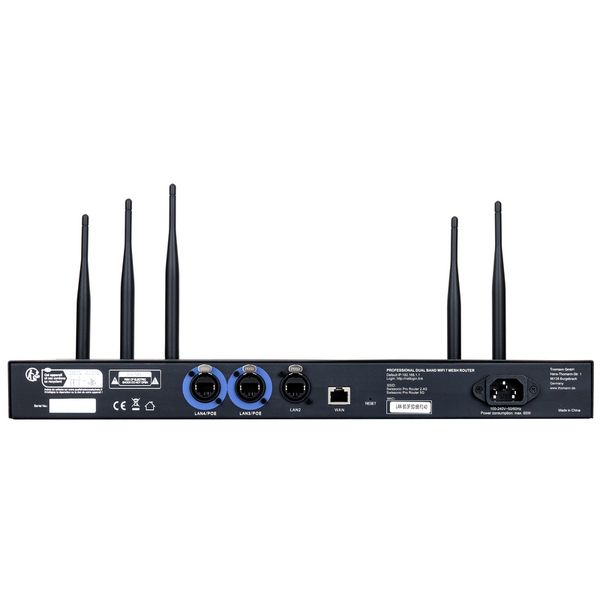

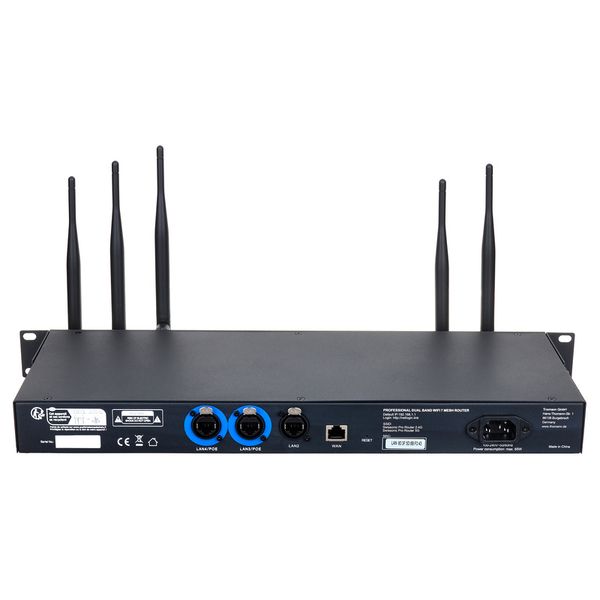

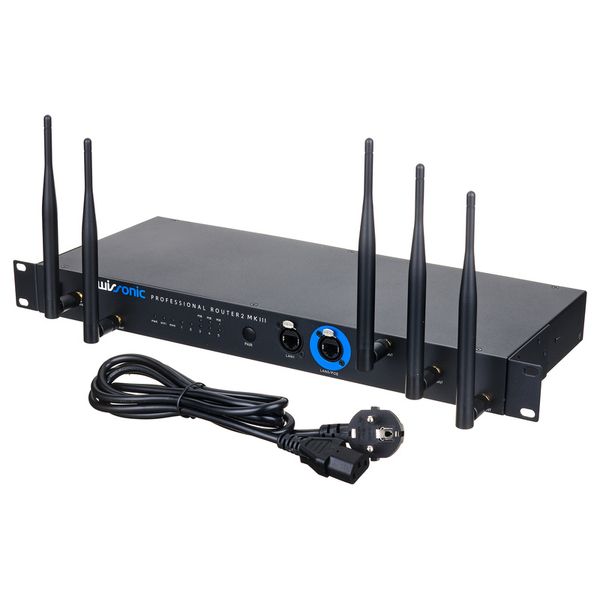

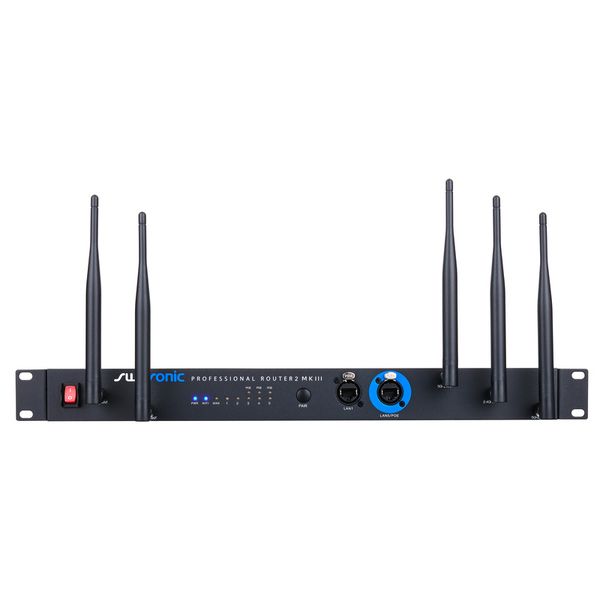

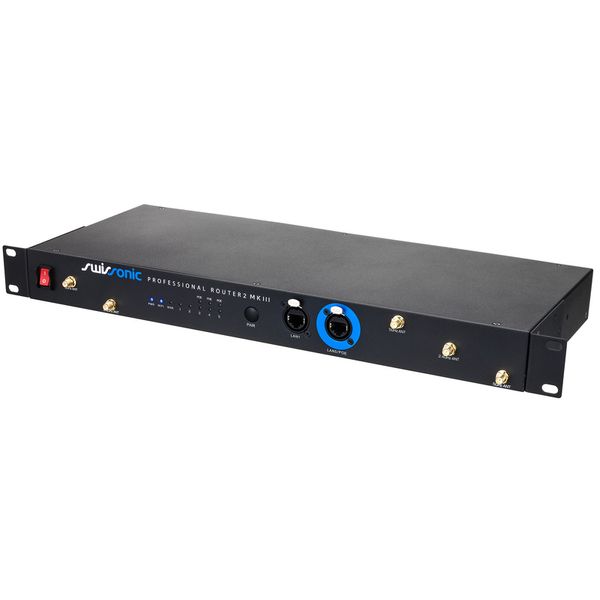

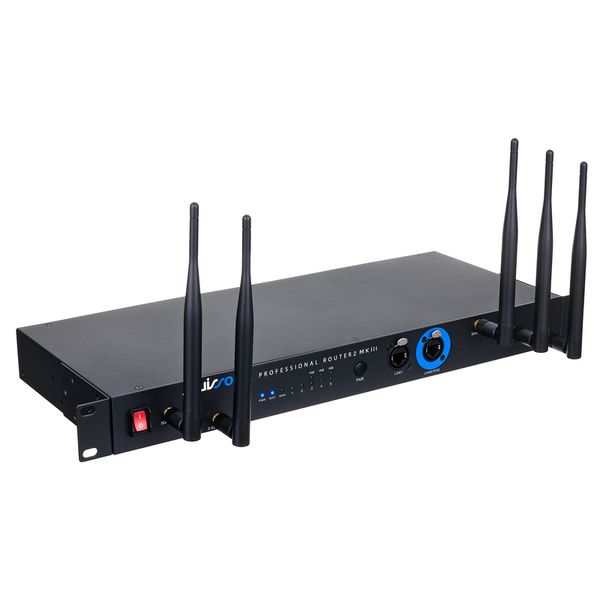

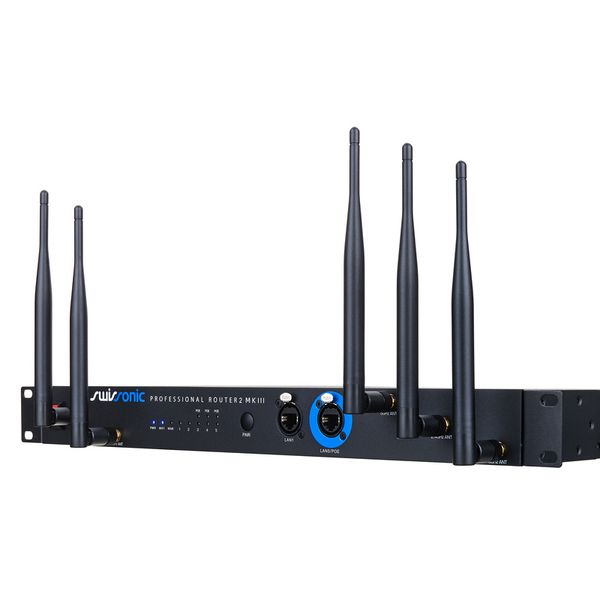

Swissonic Professional Router 2 MKIII
Wireless Dual Band Router WiFi 7 (2.4 und 5 GHz)
- Detachable antennas
- 1 x WAN-Port
- 2 x LAN Port (1000 Mbps)
- 3 x POE+ LAN Port (1000 Mbps)
- Lockable Neutrik Ethercon RJ45 connector
- WIFI standards: IEEE 802.11b/g/n/a/ac/ax/be
- Wi-Fi data throughput: up to 688 Mbps (2.4 GHz), up to 2882 Mbps (5 GHz)
- Features: Parental controls, QoS, VLAN, website blocking, IPv4/IPv6, mesh network
- Inetgrated power supply unit
- Dimensions (W x H x D, excluding mains plug and antennas): 483 x 44 x 176 mm
- Installation size: 19" / 1U
- Weight: 2.4 kg

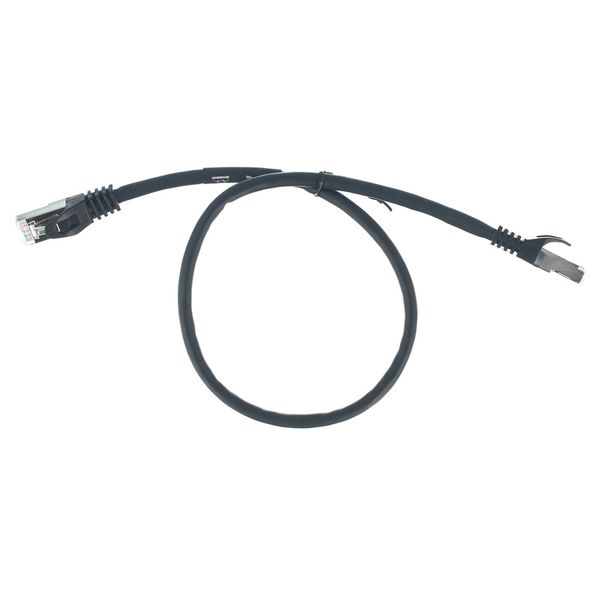

pro snake CAT6A Patch Cable 0.5m
CAt6A Patch Cable
- Length: 0.5 m
- Shielding: S/FTP
- Four x two AWG26
- Up to 500 MHz for 10 GBase-T Ethernet
- RJ45 plug / RJ45 plug with gold-plated precision plug contacts
- Exterior diameter: 6.0 mm
- Sheath: Halogen-free (LSZH)
- Weight: 0.02 kg
- Colour: Black
-
Available since April 2026
-
Item number 642558
-
Sales Unit 1 piece(s)
-
User Interface Physical/remote
-
Number of faders 0
-
DSP Input channels 48
-
Number of Microphone Inputs 24
-
Physical outputs 8
-
Digital stagebox connection AES50
-
Hotspot No
-
Multitrack Record Yes
-
integratated Player/Rec via USB/SD stereo
-
19" Rackmount Yes
-
DSP Output Channels 16
-
Busses 28
-
Number of Mono Line Inputs 8
-
Number of Stereo Line Inputs 0
-
Ethernet Ethernet
-
Soundcard interface USB-B
-
Recorder Format WAV
-
Scribble Strips Yes
-
RTA Yes
-
FX Processor 16
-
31 Band EQ 16
-
Delay Input Yes
-
Delay Output Yes
-
Matrix 8
-
DCA/VCA Groups 8
-
MIDI Interface Midi-Din
-
Sample rate 48 kHz
-
Monitor Apps Yes
-
Separate Personal Monitor system Optional
-
Expansion Card slots 1
-
Digital ADAT No
-
Digital SPDIF No
-
Digital AES3/ASESEB Yes
-
Digital MADI No
-
Digital Dante Optional
-
110V capable Yes
-
Case Optional
-
Height 183 mm
-
Width 486 mm
-
Depth 326 mm
-
Weight 9,4 kg
-
