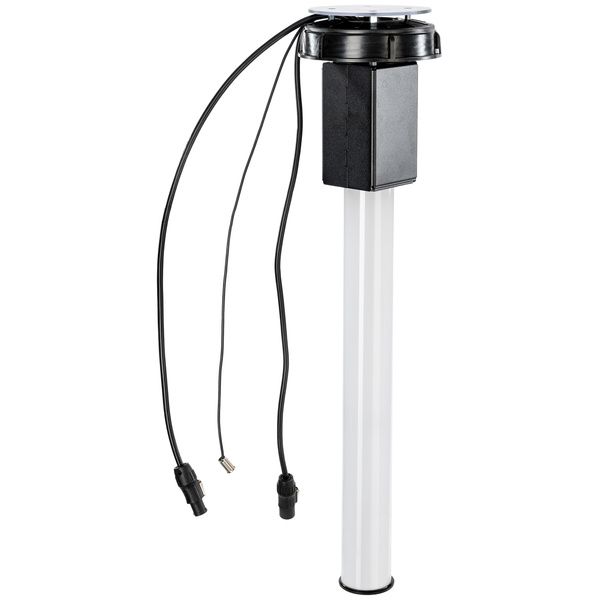

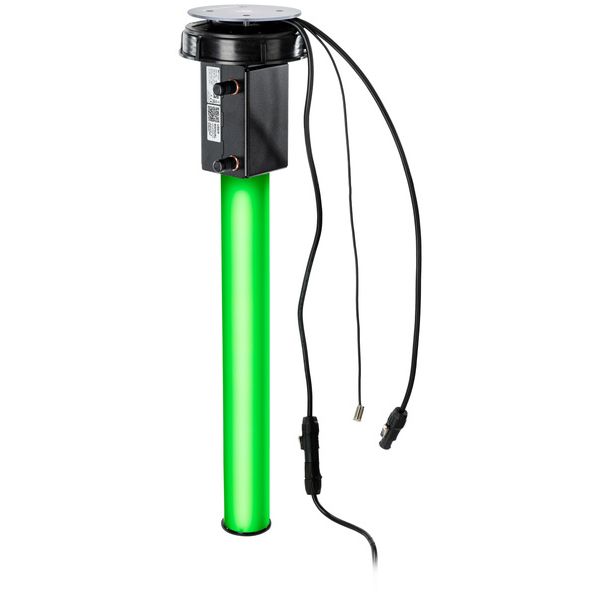

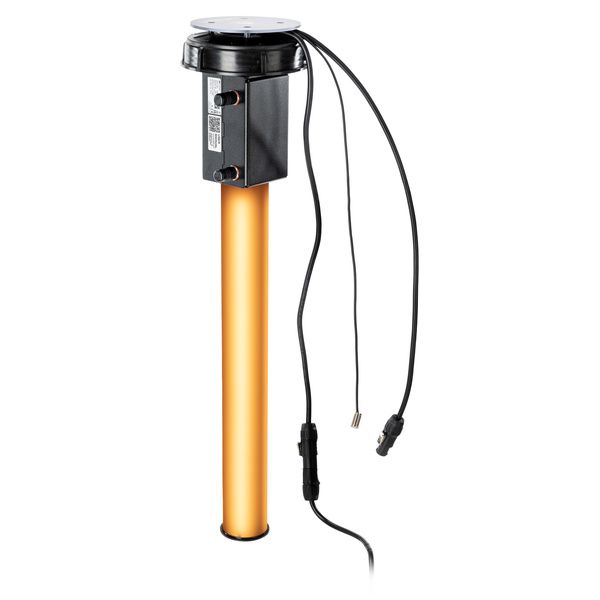

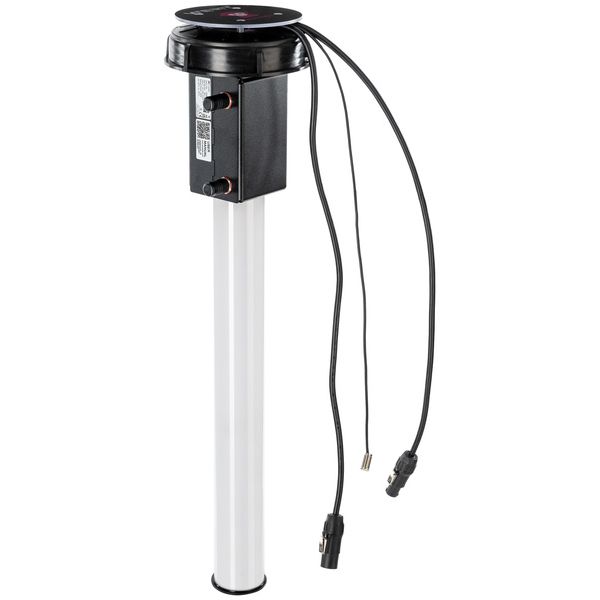

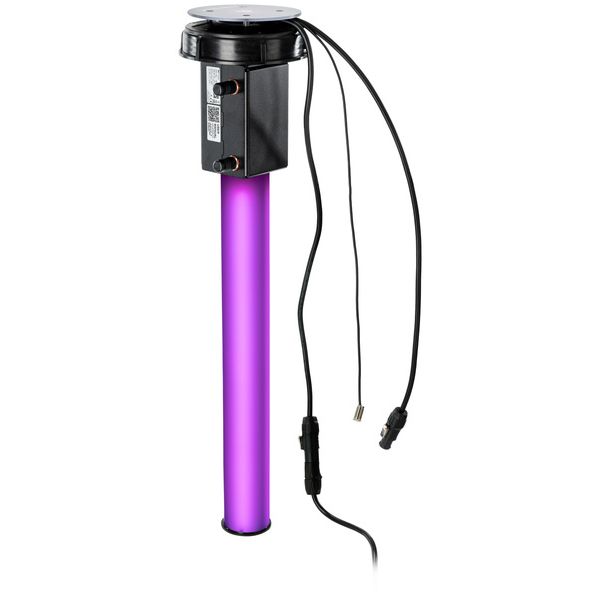

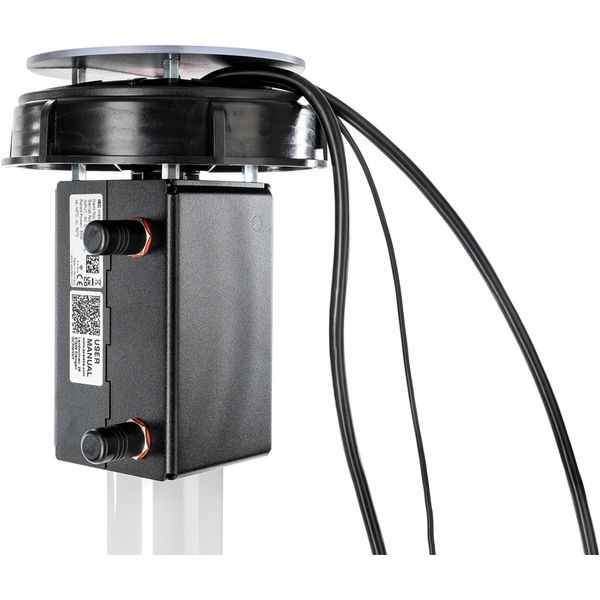

Ape Labs IBC Light PIX Install

Multipixel LED Light for IBC Containers

• IBC Light Pix model without rechargeable battery; operates on mains power only
• 162 LEDs with 18 controllable pixels
• Multipixel presets controllable via the Ape Labs app, remote control or DMX

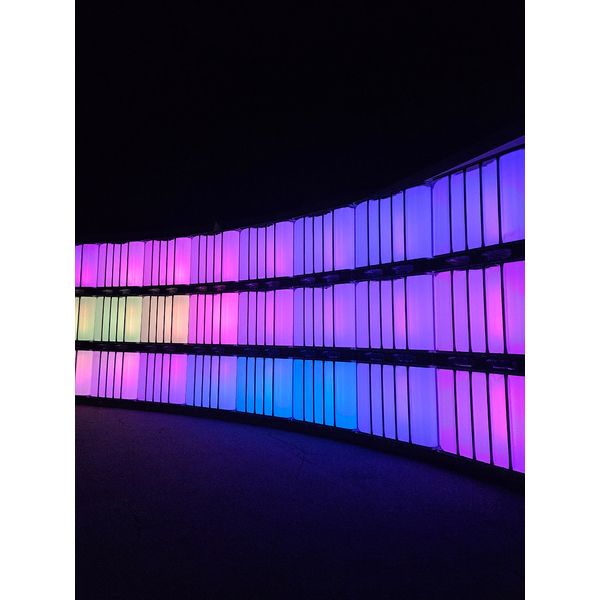

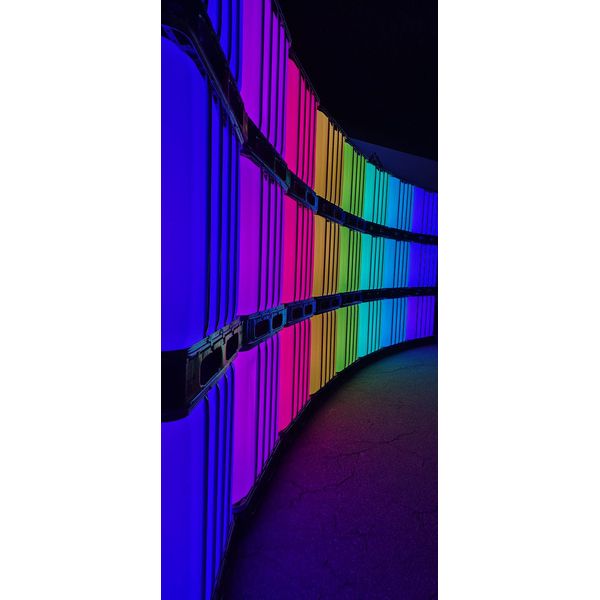

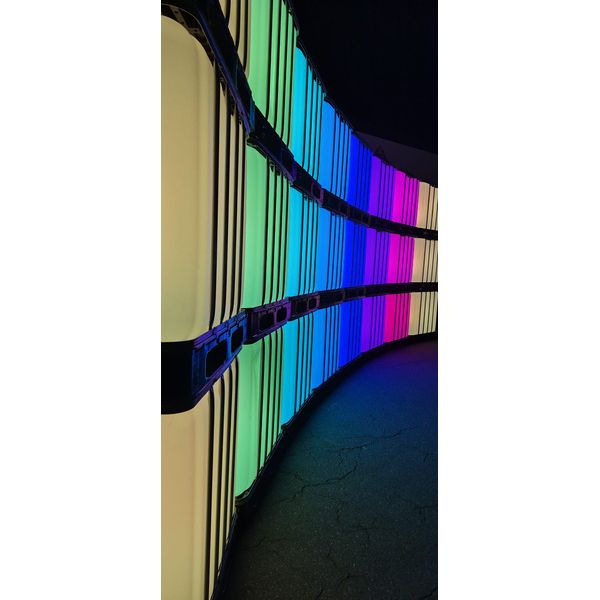

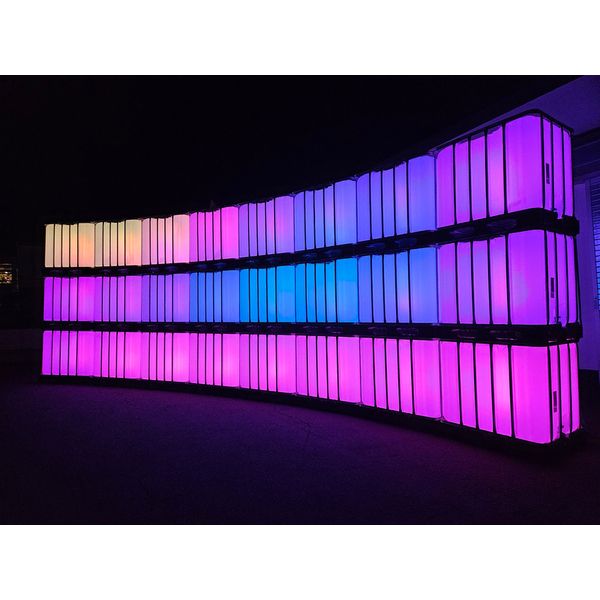

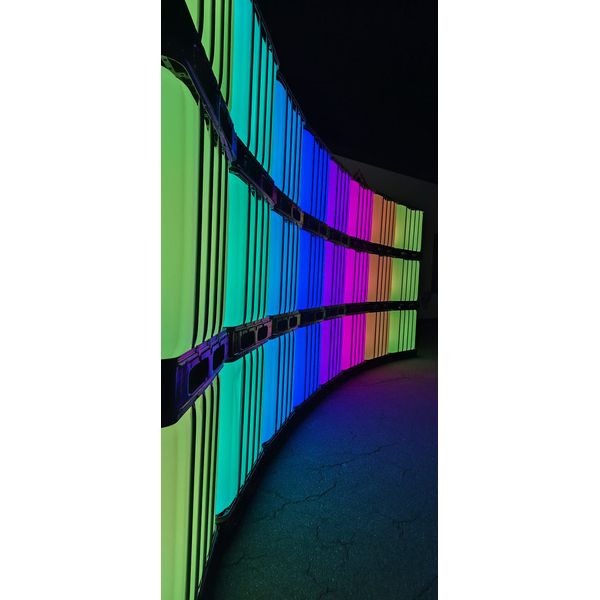

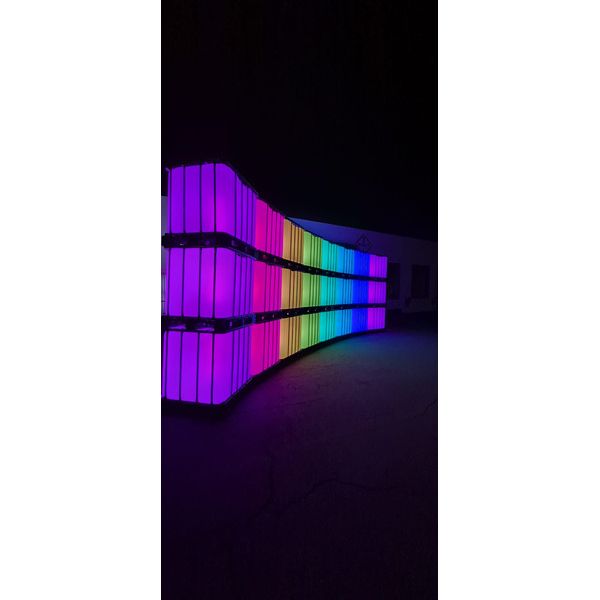

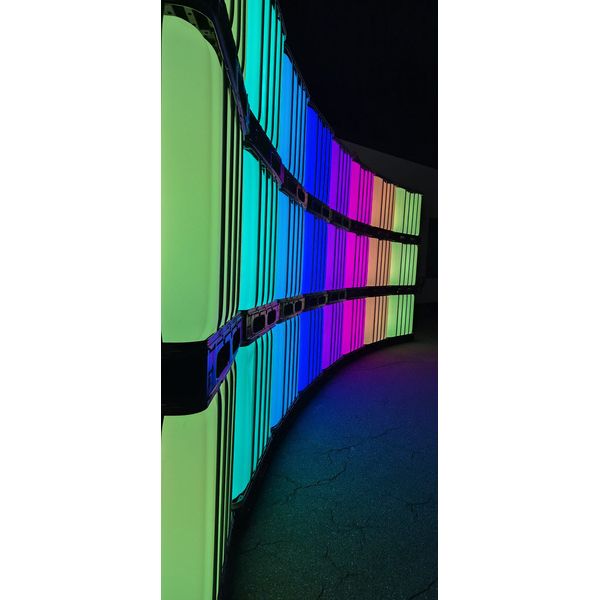

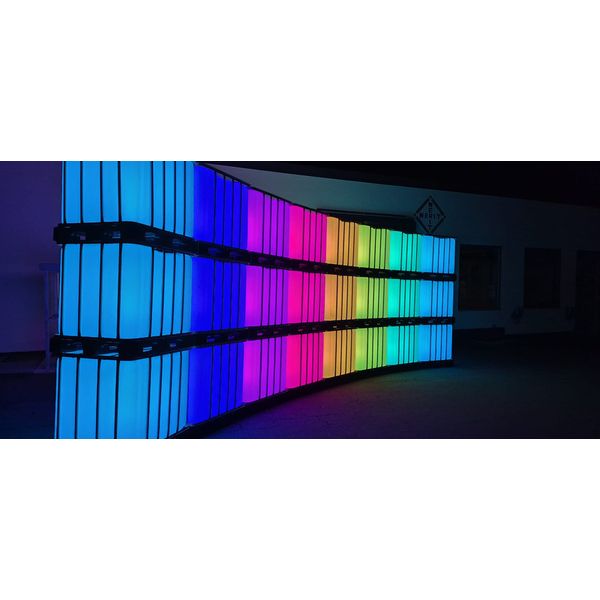

• IP protection rating: IP 20 (IBC Light PIX is water-resistant once screwed into an empty IBC container and can therefore be used outdoors, even in the rain)

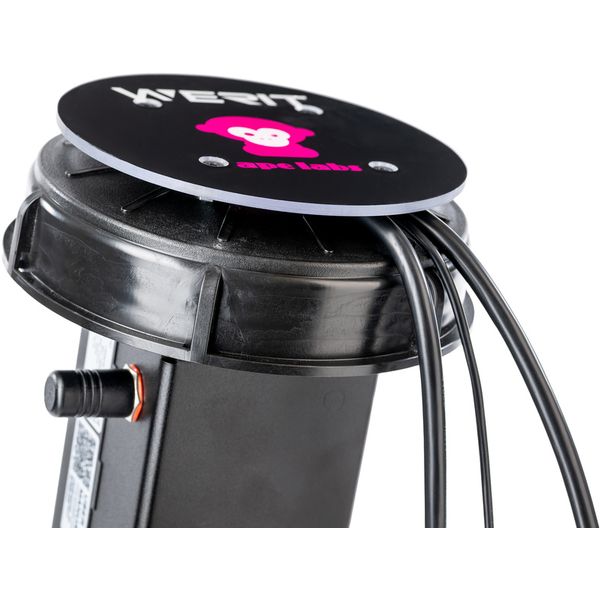

• IBC container screw-on lid, diameter: 150 mm (DN150)
• Colour mix: RGB + warm white (2700 K)
• Full flexibility in colour, brightness, effects and programmes
• Control: Ape Labs remote control (not included), Ape Labs smartphone app via Ape Labs Connect (not included, range: approx. 1,200 metres), wireless DMX via Ape Labs Connect (not included, range: approx. 1,200 metres), CRMX Wireless DMX (LumenRadio, Wireless Solution)
• DMX channels: 4, 7, 72 (3 modes)
• Colour rendering index: CRI 90
• Dispersion angle: 360°
• Flicker-free (> 2 Khz)
• Fanless
• Built-in signal repeater (signal transmission from lamp to lamp)
• Wireless transmission frequency: 2,400 – 2,485 MHz (max. 20 dBm ~ 100 mW EIRP
• Additional features: Music Mode, Pairing (pairing all relevant Ape Labs devices to ensure a secure and reliable wireless connection and cloud-based storage of personal lamp settings)
• Free software updates for lamps, Ape Labs Connect and smartphone apps
• Regular software updates with new functions and ideas from the Ape Labs community
• Power consumption: Max. 30 W (at 230 V; up to 120 units can be operated in series)
• Supply voltage: 100 – 240 V AC, 50 / 60 Hz

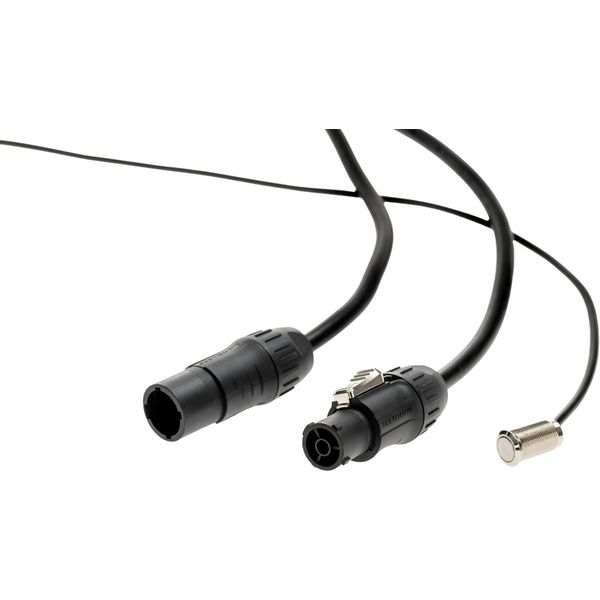

• Connections: Power Twist TR1 input/output (mains lead not included)

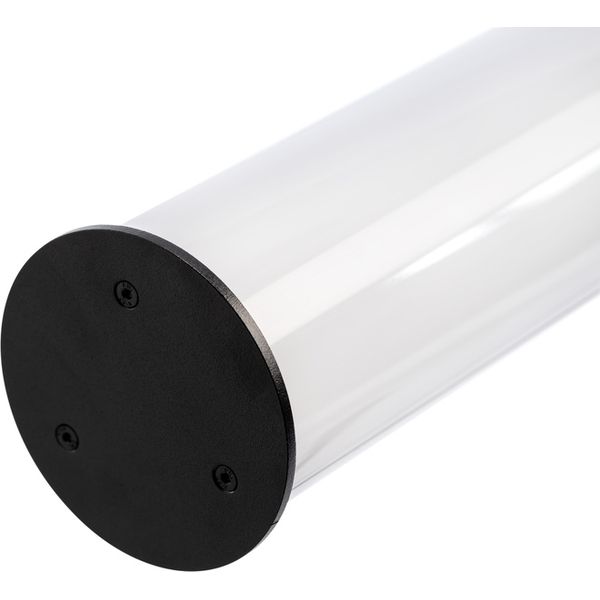

• Housing material: Aluminium and polycarbonate
• Dimensions (L x W x H): 79 x 18 x 18 cm
• Weight: 2.4 kg
• Colour: Black
