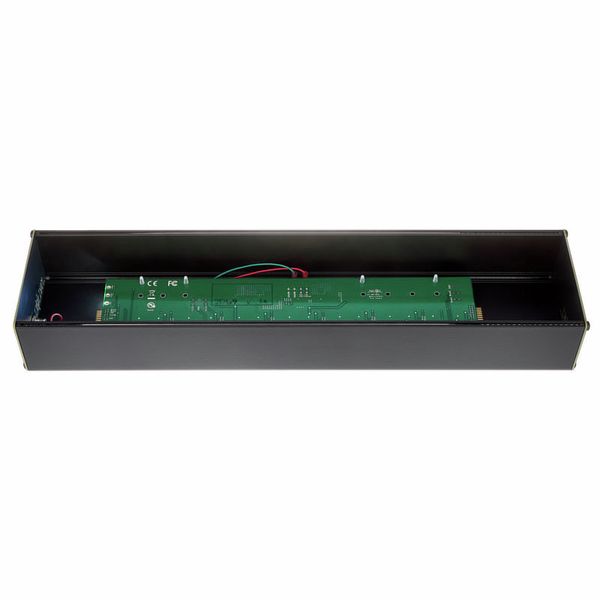

Empty housing for installation of Eurorack modules
- Size: 3U x 104 HP
- Integrated bus board with power supply + 12VDC @ 1.2A, -12VDC @ 1A, + 5VDC @ 1A
- Max. module depth over bus board: 5.08 cm
- Side mounted on / off switch and input for external power supply
- Shining 'Make Noise' logo for power status indicator
- Black powder-coated aluminium
- Dimensions (W x H x D): about 546 x 132 x 88.9 cm
- Weight: approx. 2 kg
- Includes external power supply, 40 square nuts and 40 black M2.5 screws
Available since
December 2017
Item number
427114
Sales Unit
1 piece(s)
System
Eurorack
Hight
3 U
Power Supply
Yes
Formfactor
Desktop
Power Supply Specifications
+12V/1200mA, -12V/1000mA, +5V/1000mA
