Blackmagic Design ATEM Microphone Converter
Start 360°
Signal Converter
- Expands the MADI input on ATEM Television Studio Mixers for use with additional microphones or external sound mixers
- Additional converters can be connected in series for additional sources
- Each converter has four analogue inputs that are switchable between mic and line levels and support phantom powering
- 8 Independent A/D converters are used at each input
- The HDMI monitoring output provides, among other things, tracking waveforms
- Compatible operating systems: Mac Monterey 12.0, Mac Ventura 13.0 or higher / Windows 10, 64-bit, Windows 11
- Power supply: 1 external 12V power supply with lock
- Operating voltage range: 12 - 17.5 V DC
- Power consumption: max. 12 V
- Dimensions: 125 x 200 x 40.65 mm
- Weight: 850 g

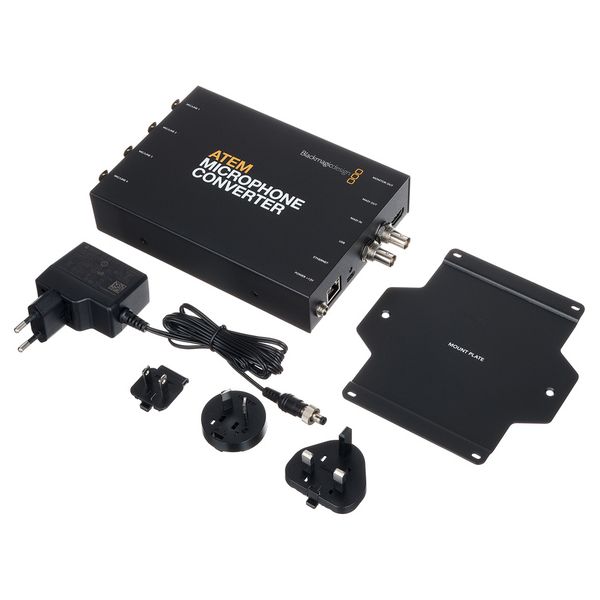

- Incl. external 12V DC power supply unit with lock and suitable international plug adapters for most countries
Connections:
- Analogue audio inputs: 4x 3-pin XLR jacks combined with 1/4-inch TRS jacks, switchable between +24 dB mic/line level with support for +48V phantom power.
- MADI inputs: 1 BNC for 64-channel MADI digital audio
- MADI outputs: 1 BNC for 64-channel MADI digital audio
- HDMI video outputs: 1 monitoring output
- Computer interface: 1 USB-C port with locking screw
- Ethernet: Supports 10/100/1000Base-T
Audio:
- A/D converter per input: 8
- Digital preamplifier: 32 bit
- Dynamic range: 131 dB(A)
- Ground noise: -129 dBV
- Total harmonic distortion at full load: 0.002 %.
- Output sampling depth: 24 bit
- Output sampling rate: 48 kHz
- MADI compliance: AES10-2020
available since
April 2023
Item number
561952
sales unit
1 piece(s)
Input
Audio
Output
Audio
