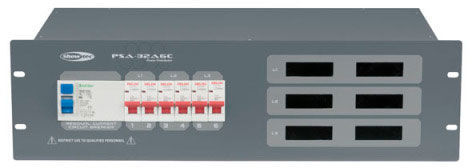

Showtec PSA-32A6C Power Distributor

Power Distribution Unit

  • Digital voltage and ampere monitoring per phase
  • Automatic fuses type C with 16 A per output
  • Residual current device
  • Input: 1.5m H07RN-G 5G6 Cable CEE male 3P N PE, 400 VAC, 50/60 Hz
  • Output: 6x CEE blue female 1P N PE, 230 VAC, 50/60 Hz
  • 1 x RCCB Power: 40 A Sensitivity: 30 mA Class: A
  • 6 x MCB Rated current: 16 A Tripping characteristic: Type C
  • Dimensions: 483 x 135 x 245 mm
  • Weight: 9.50 kg

Further Information

Input CEE32A
Shockproof Sockets 0
CEE16A Dosen 6
CEE32A Sockets 0
Other Connectors -
Loadability 32 A
Circuit Breaker Yes
Fuse(s) 6x LS C16A
Switch No
Rack format Yes
Mounting height 3 U
2 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.5 /5
  • quality
Text ratings for this product are available in another language only so far
it Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
OTTIMO POWER DISTRIBUTOR
Società Musicale, 09.07.2018
Ho acquistato questo prodotto spinto dal prezzo che equivale a quello di un quadro elettrico da cantiere trifase 32A certificato. Il plus di questo Power Distributor è la lettura immediata del voltaggio, utile in caso ci siano luoghi in cui le fasi e il neutro non siano collegati a dovere e rischiando di collegare una utenza 220V ad una presa che invece eroga 380V (con le catastrofiche conseguenze del caso). Altro plus del prodotto è la possibilità di leggere l'assorbimento istantaneo per fase, utilissimo per distribuire correttamente i carichi, in caso di utilizzatori particolarmente voraci di corrente (PA, luci alogene da migliaia di watt...).
Il prodotto poi si presenta molto solido e dopo parecchi spettacoli posso dire che non dà segni di cedimento o di danneggiamento. Le prese sul retro sono molto comode da raggiungere specie se viene posto in un rack a profondità ridotta. Unica pecca del prodotto l'assenza di una presa trifase a cui poter attaccare dimmer o altro.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
kr3,799
Plus kr200 shipping

Since we ship from Germany, additional costs through taxes and customs may be incurred

Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times

Delivery approx. between Tuesday, 10.08. and Thursday, 12.08.
