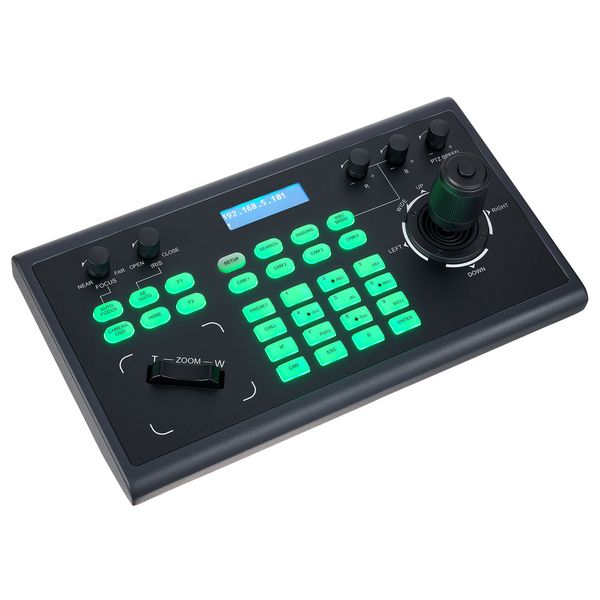

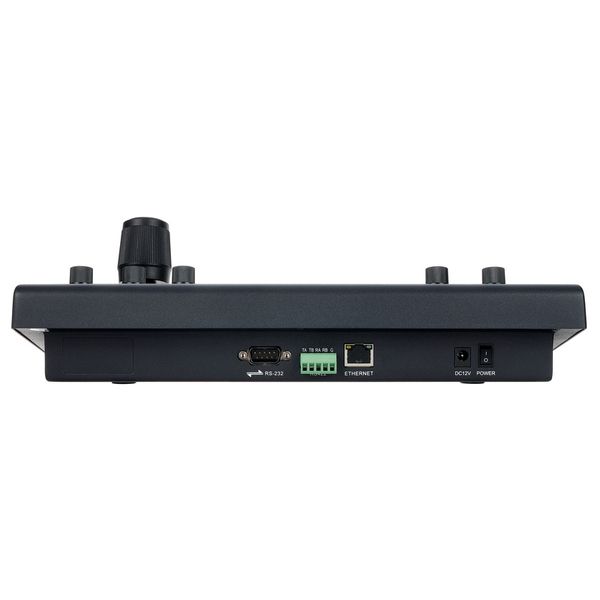

RGBlink PTZ Camera Control; PTZ camera controller; compatible with PTZ cameras supporting Onvif, Visca and elco-D/P protocols; LCD screen on front panel with key tone; modifiable control code; control of camera speed via joystick; adjustment of camera parameters via buttons; support for PoE; allows control of up to 255 PTZ cameras in a network; cameras can be interconnected via LAN or serially via RS232/RS422/RS485; Techn. Technical data:; Connections:; RS232: 1x DB15; RS422 (RS485): 1x 5Pin terminal; LAN: 1x RJ45; Control protocol: VISCA / Pelco-D / Pelco-P; Network protocol: ONVIF / VISCA; Baud rate (dps): 2400 / 4800 / 9600 / 19200 / 38400 / 115200; Input voltage: DC 12 V; Power consumption: max. 6 W (power supply included); Dimensions: 320 x 180 x 110 mm;,
